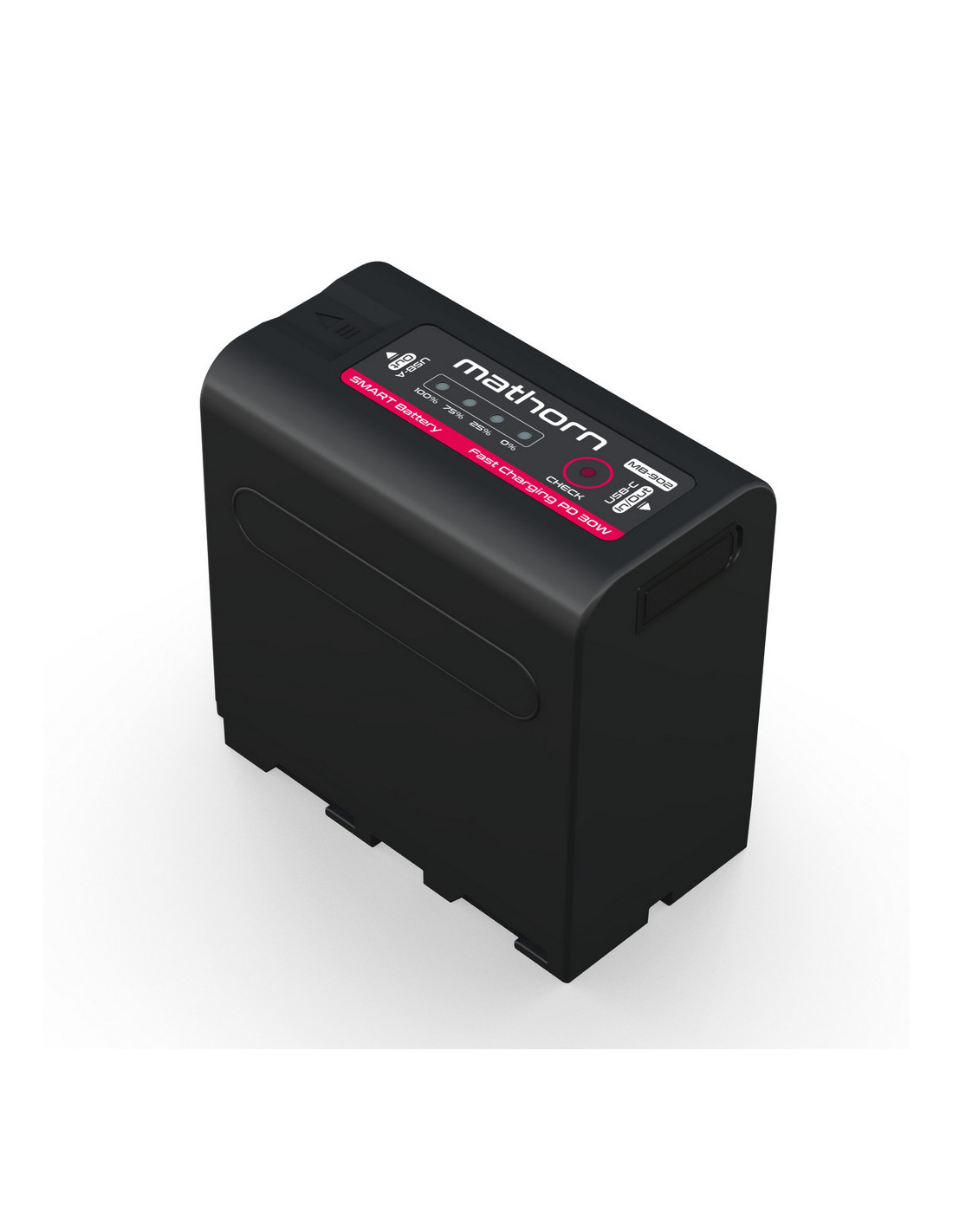

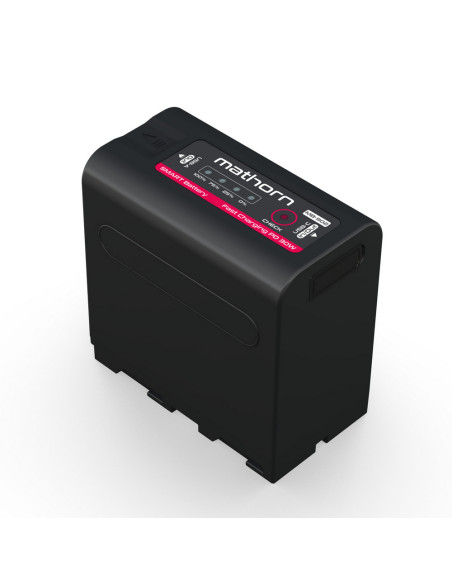

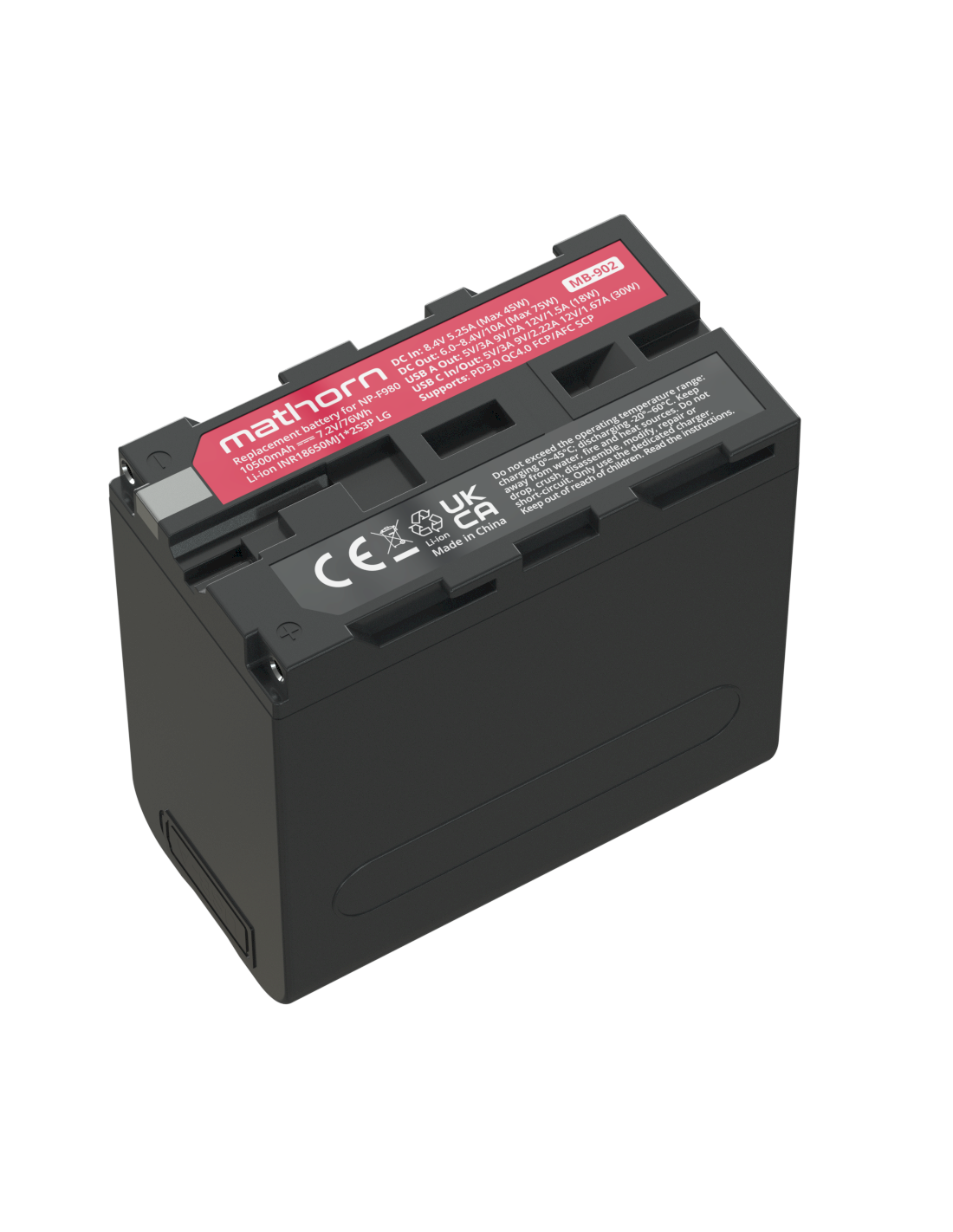

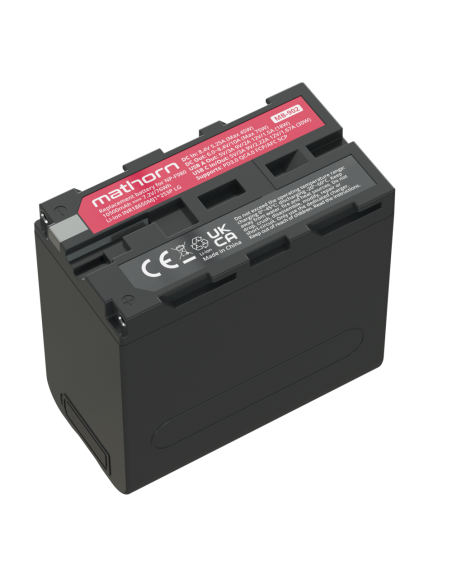

Mathorn battery MB-902 10500mAh 76Wh USB-C PD30W for NP-F980

Mathorn MB-902 10500mAh 76Wh USB-C PD30W LED replacement battery for NP-F980

High-power NP-F980 replacement battery with SMART features

The Mathorn MB-902 battery is the natural successor to the MB-901 model. Thanks to a redesigned power and charging system, it delivers up to twice the output power — up to 70 W — while using the same proven LG INR18650MJ1 lithium-ion cells with a total capacity of 10500 mAh. New USB-A and USB-C ports now support modern fast-charging protocols, making the battery even more practical for everyday use. Replacing the LCD display with an LED indicator has also reduced the battery’s height by 7 mm (–9.1%) and lowered its weight by 14 g (–4.17%).

Be SMART with the New Mathorn MB-902 Battery

The most important upgrade in the MB-902 is the SMART fast-charging module, previously known from Mathorn V-mount batteries. The battery now features a bi-directional USB-C port supporting Power Delivery 3.0, AFC, Huawei FCP and SCP, as well as Quick Charge 4.0.

The USB-A port has also been enhanced with support for Huawei FCP, SCP, and Quick Charge 3.0. As a result, the MB-902 can power not only NP-F-compatible devices, but can also function as a high-capacity, fast-charging power bank.

Save Time with Faster Charging

Thanks to the bi-directional USB-C port with Power Delivery 3.0, the battery can be charged at up to 30 W. In practice, depending on ambient temperature, charging from empty to 80% takes approximately 45–55 minutes, while a full charge to 100% takes around 75–90 minutes. This means charging times can be reduced by over 80% compared to the standard 5 V / 2.4 A charging used in the MB-901.

The Best Components, Now Even Better

Like its predecessor, the Mathorn MB-902 is built around high-quality LG INR18650MJ1 lithium-ion cells with a total capacity of 10,500 mAh. However, the newly designed power system can now deliver up to 70 W via the NP-F output, nearly doubling the power available in the MB-901. This makes the new battery even better suited for powering devices such as LED panels and on-camera monitors.

Key Features of the MB-902 Battery

• High-performance LG INR18650MJ1 cells with 10,500 mAh capacity and 76 Wh energy
• Maximum NP-F output power of up to 70 W
• USB-A output rated at 18 W with Quick Charge 3.0
• USB-C input/output rated at 30 W with Power Delivery 3.0 and Quick Charge 4.0
• SMART system supporting fast-charging protocols on USB-A and USB-C ports
• LED charge level indicator
• Popular and widely compatible NP-F mount
• Compact size and low weight — only 323 g
• Battery capacity and current performance verified under real-world load conditions
• Supports up to 500 full charge and discharge cycles
• Microprocessor-controlled BMS with thermal, current, voltage, and overload protection
• 3-year manufacturer’s warranty

Warranty and Safety

Battery usage can involve a wide range of real-world scenarios that are not always ideal. For this reason, every Mathorn battery is equipped with a full set of modern active and passive protection systems, including over-current, over-voltage, short-circuit, and thermal protection. These safeguards reduce the risk of damage to both the battery and connected devices, extending the period of safe and reliable operation. That’s why every Mathorn battery is backed by an extended 3-year warranty.

Technical Specifications
