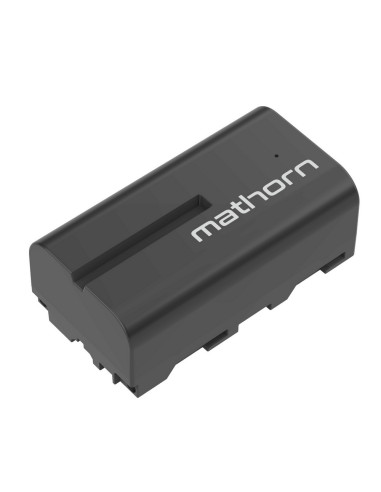

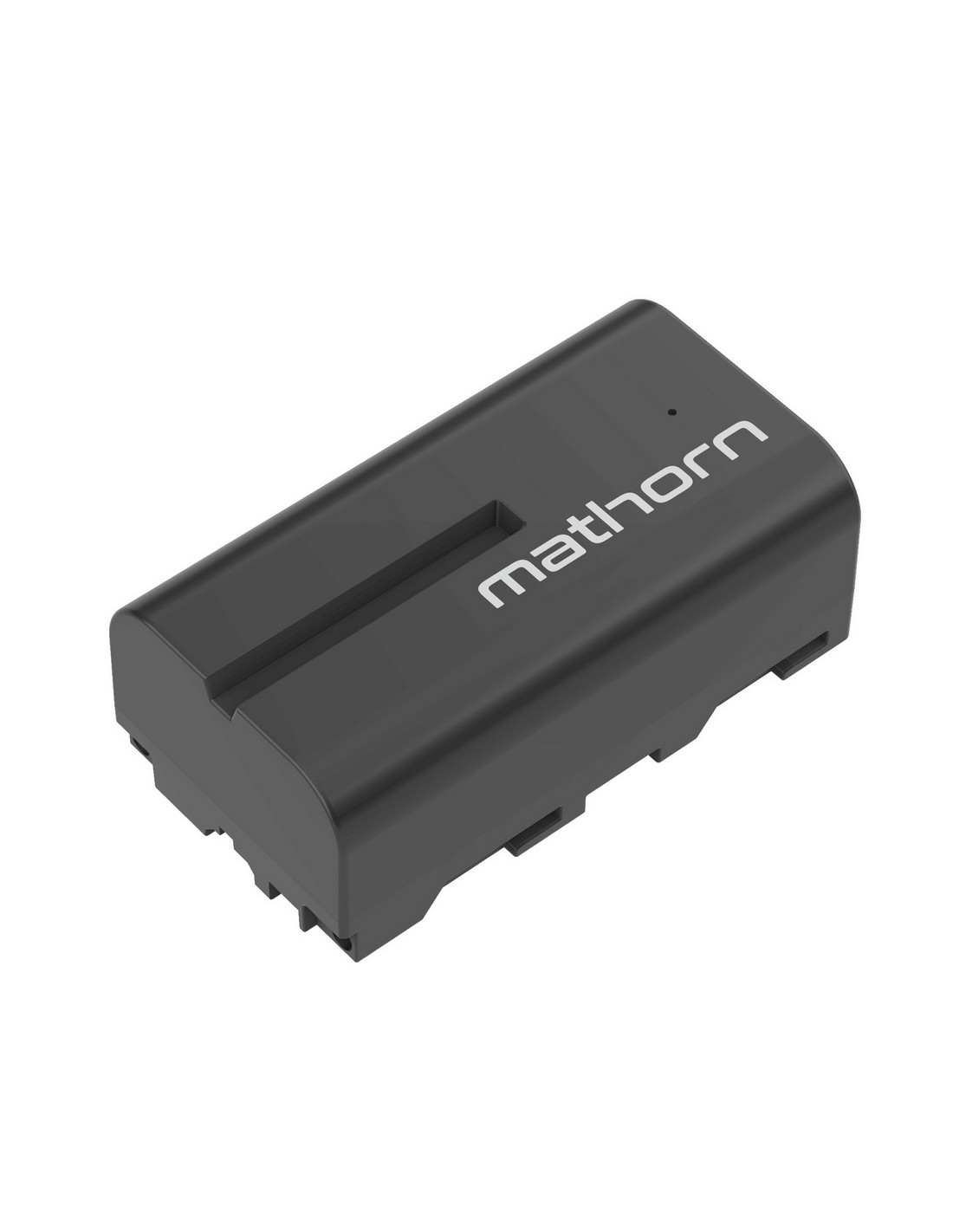

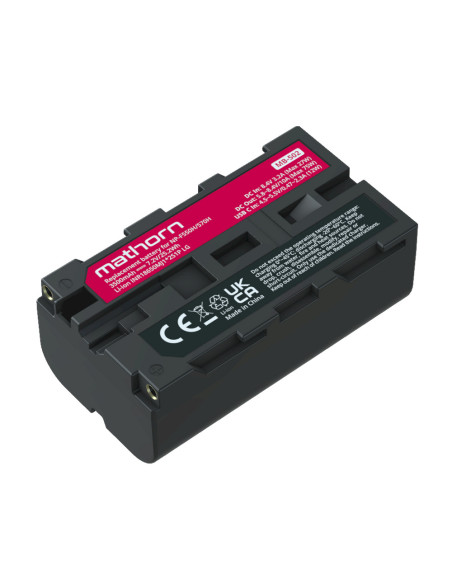

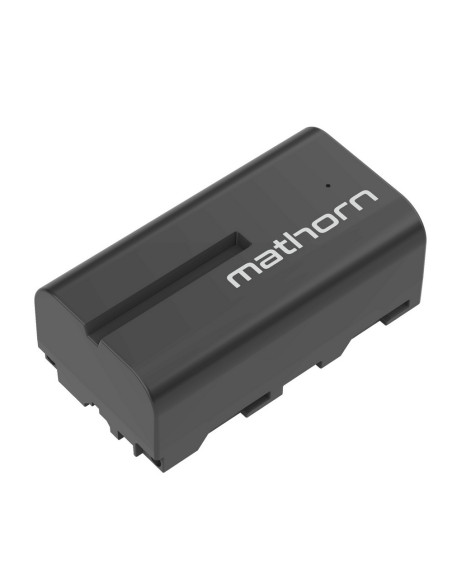

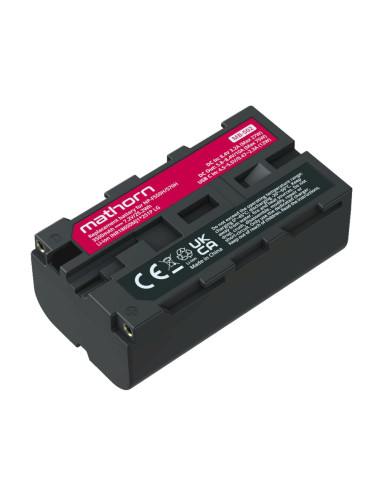

Mathorn MB-502 3500mAh 25Wh USB-C dla NP-F550H/F570H
Compact NP-F550H/F570H battery replacement with USB-C charging
Mathorn MB-502 is a fully compatible replacement for Sony NP-F550H / NP-F570H batteries. It is built using two LG INR18650MJ1 cells, delivering a total capacity of 3500 mAh and 25.2 Wh of energy. Thanks to its compact size and low weight, the MB-502 is well suited for powering lightweight photo and video accessories. It is an ideal choice for:
- on-camera and field monitors,
- video recorders,
- LED panels with low to medium power consumption,
- wireless video transmission systems,
- camera accessories mounted on rigs and gimbals.
The battery can be charged either in a standard NP-F charger, with charging current up to 3.2 A (27 W), or via the USB-C input (5 V / 2.3 A, up to 12 W). This allows convenient charging from a mains charger, car charger or power bank. A built-in LED indicates both the charging process and when charging is complete.
Key features of the MB-701 battery:
- high-current LG INR18650MJ1 cells with a capacity of 3500 mAh and 25.2 Wh of energy
- continuous output power via NP-F connector: 42 W
- USB-C charging input: 5 V / 2.3 A (12 W)
- LED indicator showing charging status
- popular and widely used NP-F connector
- compact design and low weight of approx. 80 g
- capacity and current performance verified under real operating load
- service life of up to 700 full charge and discharge cycles
- microprocessor-controlled BMS with thermal, current, voltage and overload protection
- 3-year warranty
Warranty and safety
During its service life, a battery may be used in a wide range of conditions that are not always optimal. For this reason, every Mathorn battery is equipped with a full set of modern active and passive safety protections, including overcurrent, overvoltage, short-circuit and thermal protection. These safeguards reduce the risk of damage to both the battery and connected devices, extending the period of safe and reliable operation. As a result, each battery is covered by an extensive 3-year warranty.
Specyfikacja techniczna
|
Parameter |
Value |
|
Nominal capacity / Energy |
3500 mAh / 25.2Wh |
|
Nominal voltage / Charging voltage |
7,4 V / 8,4V |
|
Max continuous output power |
42W |
|
Charging voltage and current |
8.4V/3.2A (27W) |
|
USB C Input for charging |
5V/2.3A (12V) |
|
Wymiary |
71x39x27mm |
|
Waga |
77 g (+/- 5g) |
