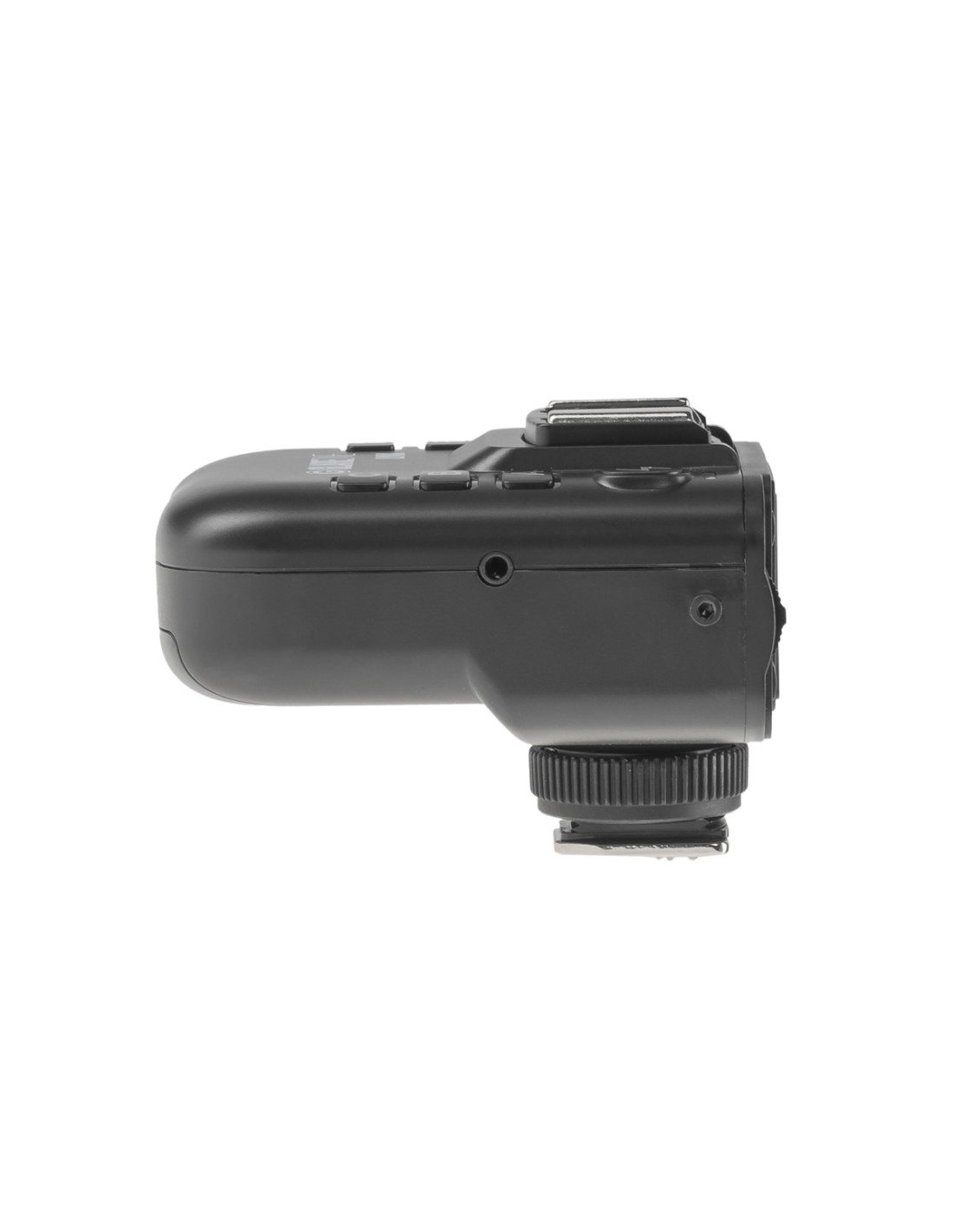

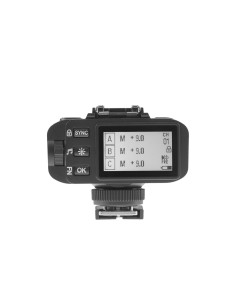

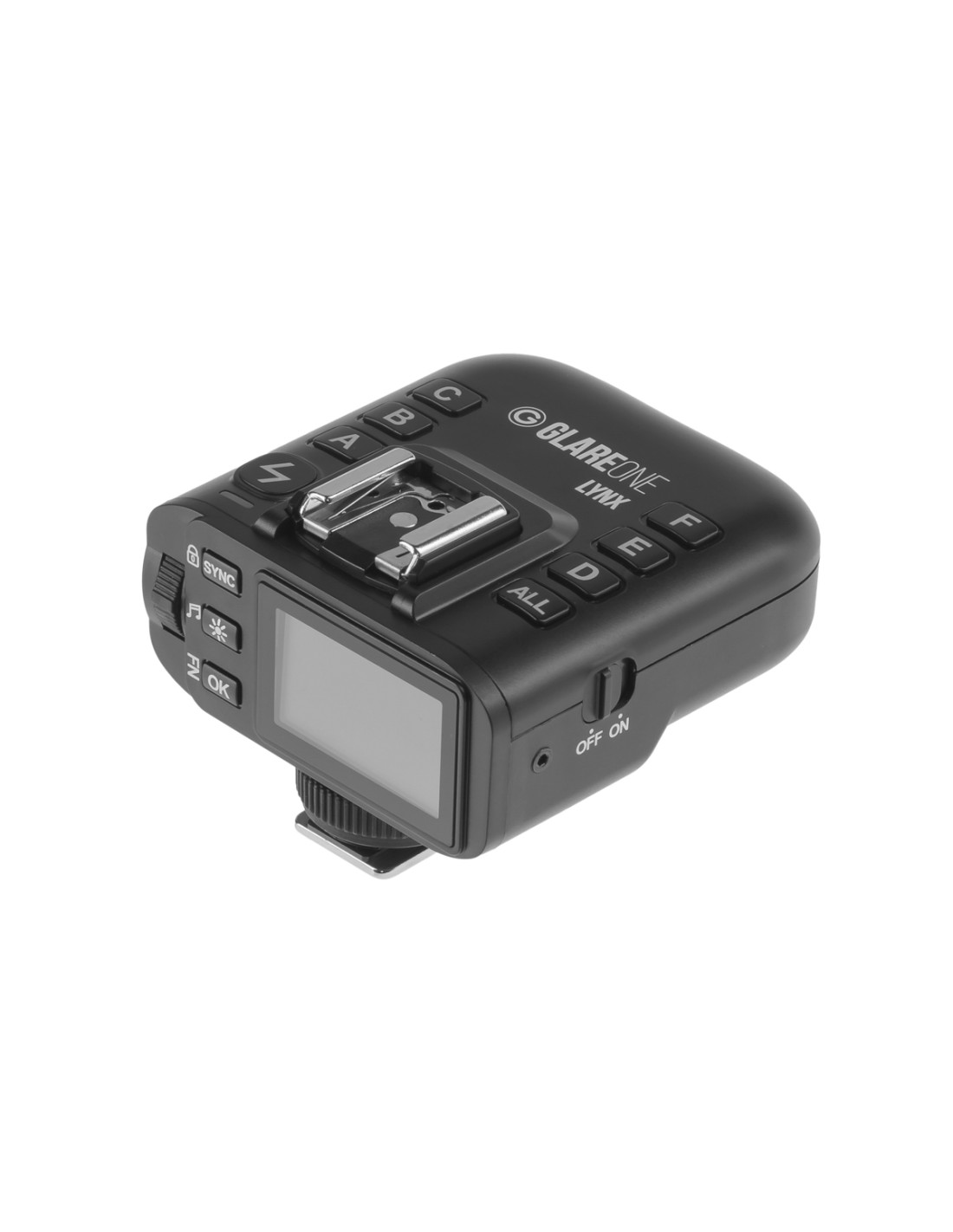

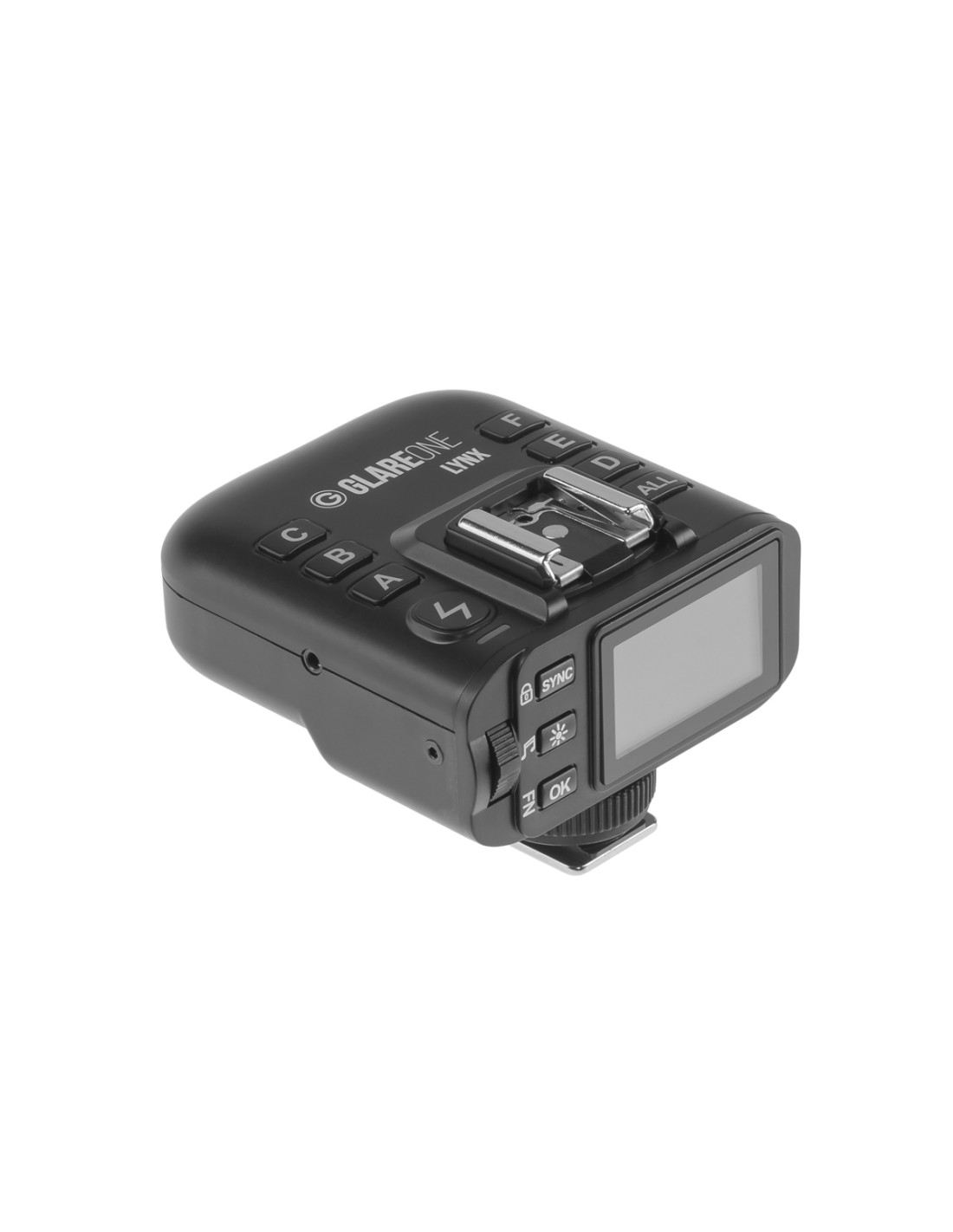

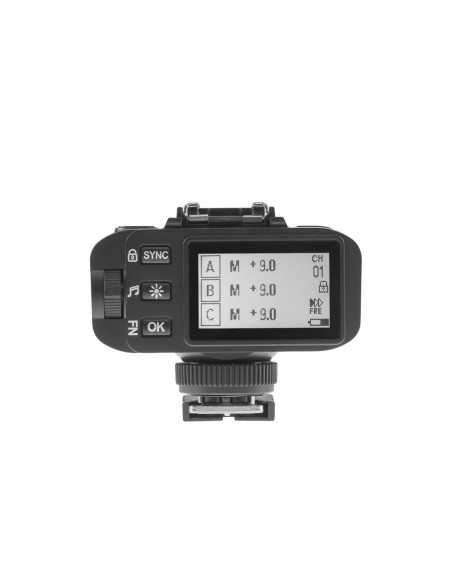

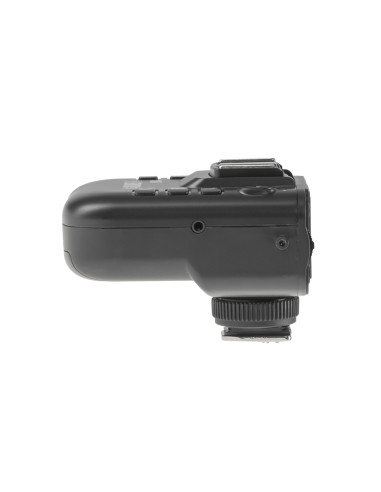

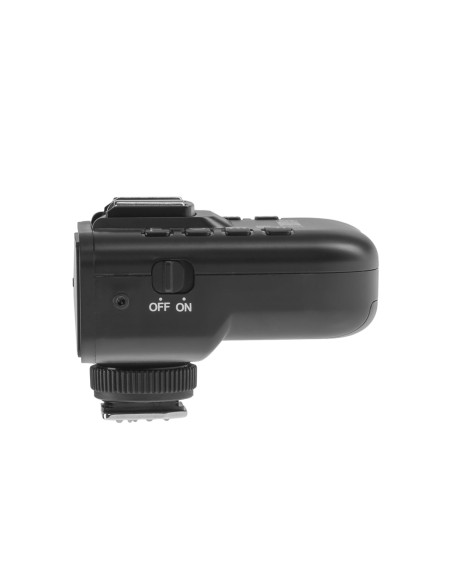

GlareOne Lynx S
GlareOne Lynx S combines the functionality of both a transmitter and a receiver. With a range of up to 100 meters, it ensures stable communication, supporting 6 groups and 32 channels. Lynx features High-Speed Sync (HSS) up to 1/8000 seconds and TTL support.
Versatility and functionality

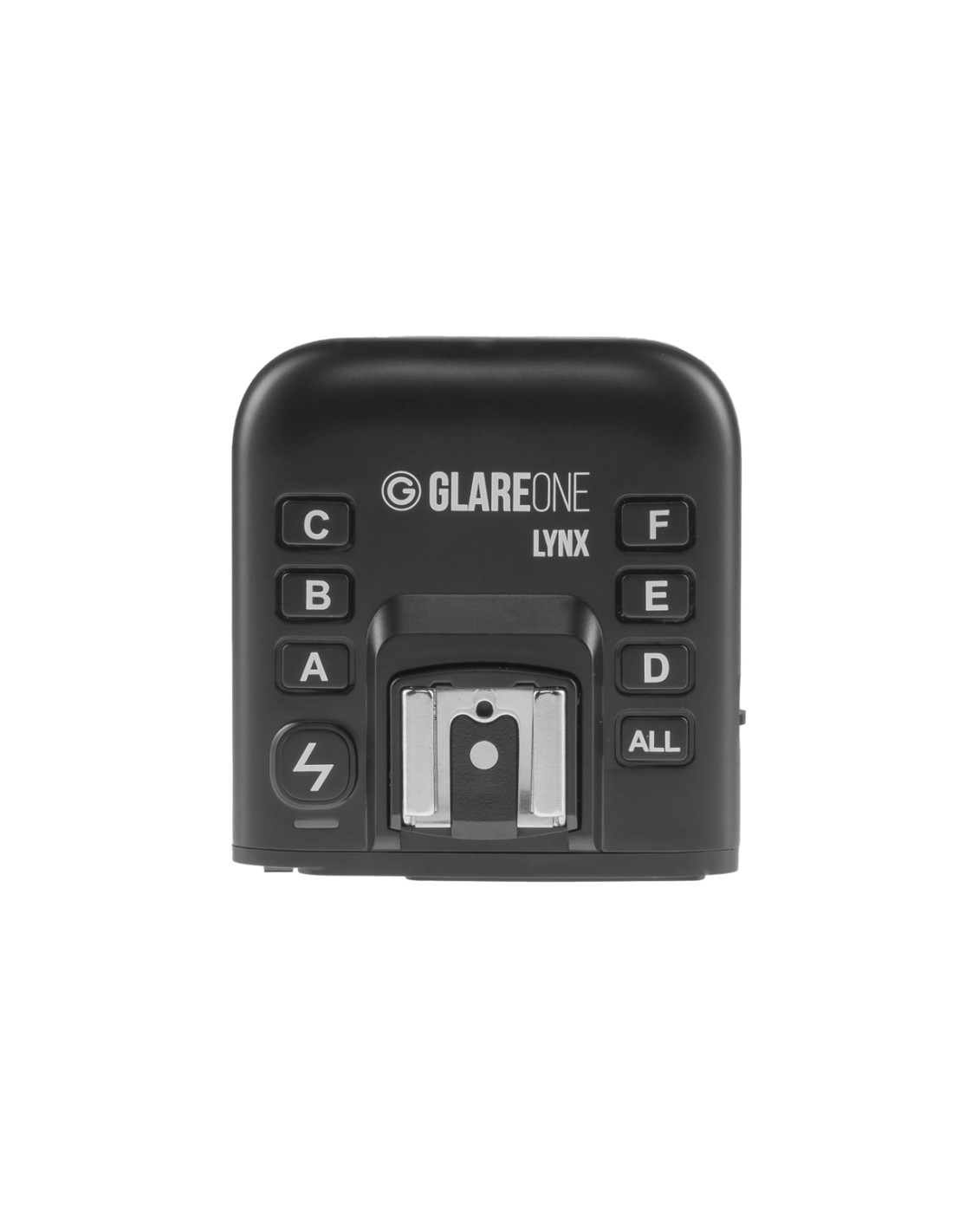

The GlareOne Lynx S is an advanced device capable of functioning as a transmitter (default) or a receiver, offering versatility in managing complex lighting setups. The device is equipped with a hot shoe mount on top, allowing you to attach a flash without built-in radio control and trigger it remotely from another GlareOne device in MASTER mode.
Compatibility and power supply

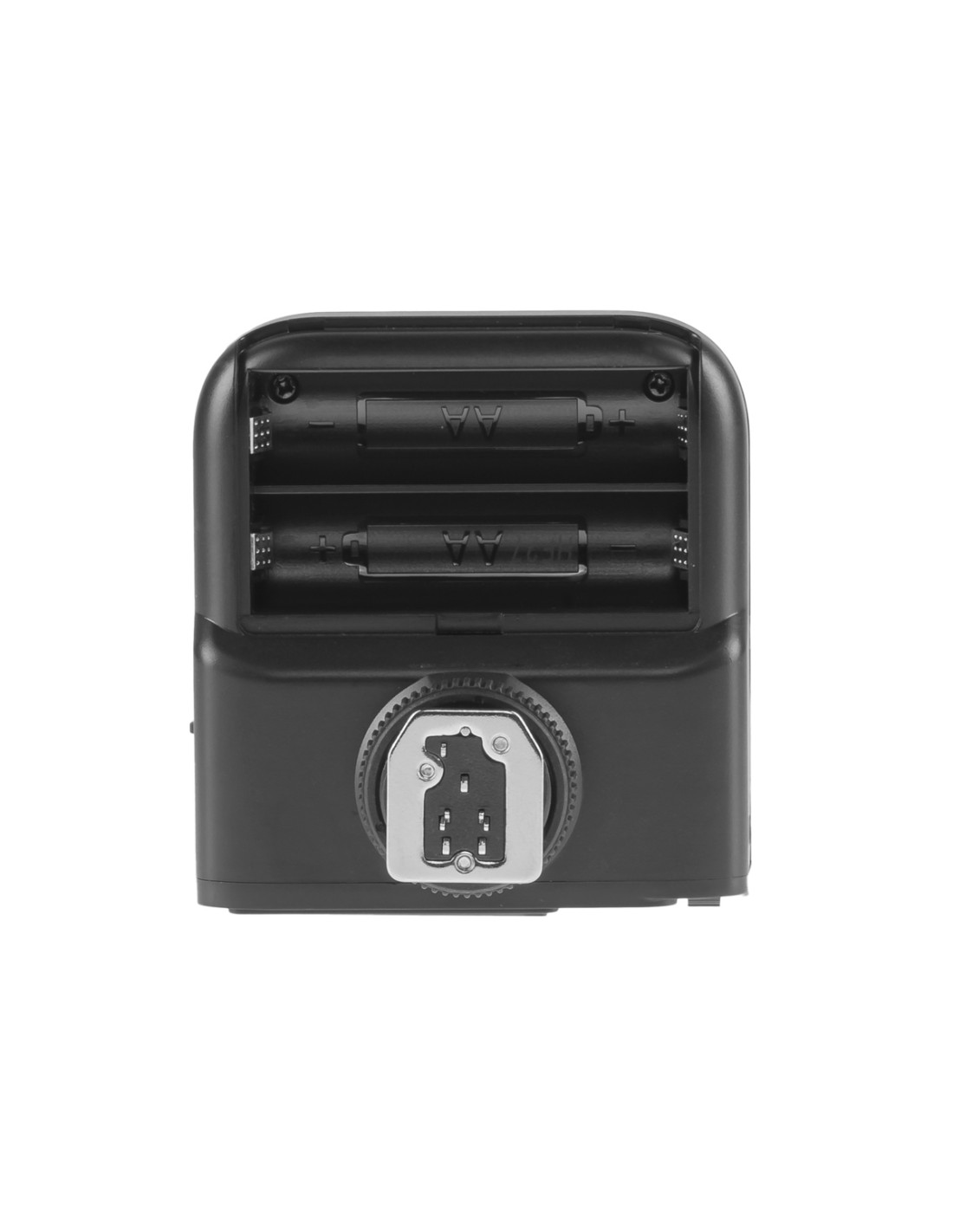

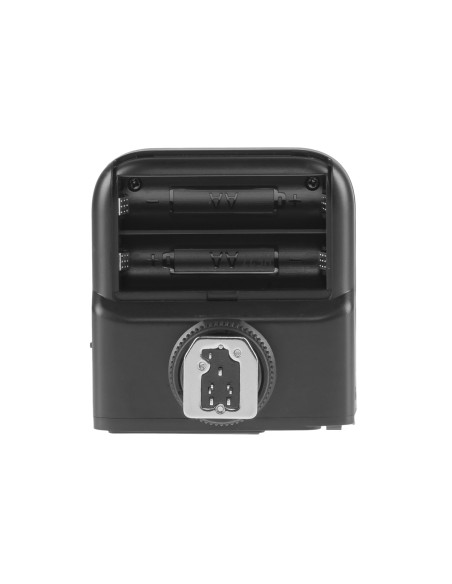

The GlareOne Lynx S is compatible only with Sony. It is powered by two AA batteries, providing long operational time and easy battery replacement when needed.
Range and communication
With a range of up to 100 meters and a radio frequency of 2.4 GHz, the GlareOne Lynx ensures stable communication between devices. It supports 6 groups and 32 communication channels.
HSS and TTL
The Lynx S supports High-Speed Sync (HSS) up to 1/8000 seconds and TTL, allowing for precise and automatic flash power adjustments to match lighting conditions.
Bluetooth connectivity and GlareOne App
Thanks to built-in Bluetooth connectivity, the GlareOne Lynx S can be controlled remotely via the GlareOne app, enhancing convenience and flexibility.
Features of the GlareOne Lynx S:
- Dual-function - transmitter and receiver
- Range up to 100 meters
- 2.4 GHz frequency
- 6 groups / 32 communication channels
- Powered by 2x AA batteries
- Compatible with Sony
- High-Speed Sync (HSS) up to 1/8000 seconds
- TTL support
- Bluetooth connectivity
- GlareOne app integration
The box contains:
1x transmitter
1x user manual
YouTube product presentation
Technical specifications
|
Model |
Lynx S |
|
Type |
Wireless flash controller and trigger |
|
Compatibility |
Lynx: Canon / Nikon / Fujifilm / Lumix / OM System Lynx S: Sony |
|
Compatible lights |

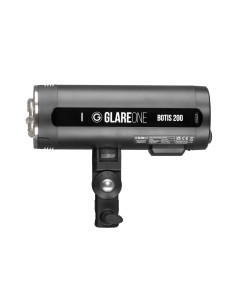

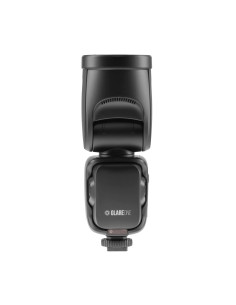

Vega, Antares, Apus, Botis |
|
Master mode |
Yes |
|
Slave mode |
Yes |
|
Radio frequency (GHz) |
2.4 |
|
Frequency range (MHz) |
2402 - 2482 |
|
Modulation |
GFSK |
|
EIRP (dBm) |
17 |
|
Antenna energy range (dBi) |
3 |
|
Maximum radio frequency power (mW) |
32 |
|
Range (m) |
100 |
|
Mode |
M / TTL / Sleep |
|
Channels |
32 |
|
Groups |
Master 6 (A-F) / Slave 6 (A-F) |
|
Hot shoe |
Lynx: universal Lynx S: Sony |
|
Maximum flash synchronization time for lights without HSS |
Canon / Fujifilm / Lumix / OM System / Sony: 1/250 s Nikon: 1/320 s |
|
High Speed Sync (HSS) |
Yes, maximum sync time 1/8000 |
|
Bluetooth |
Yes |
|
Freeze mode |
Yes |
|
ZOOM settings |
Yes |
|
Synchronization socket |
Yes, 2.5 mm |
|
Power supply |
2x AA |
|
Operation time |
80h |
|
Dimensions(mm) |
72 x 68 x 53 |
|
Weight (g) |
100 |
|
The parameters given in the above table are indicative, and the actual dimensions of the product may differ slightly from them. |
|
