GlareOne Lynx
GlareOne Lynx combines the functionality of both a transmitter and a receiver. With a range of up to 100 meters, it ensures stable communication, supporting 6 groups and 32 channels. Lynx features High-Speed Sync (HSS) up to 1/8000 seconds and TTL support.
Versatility and functionality

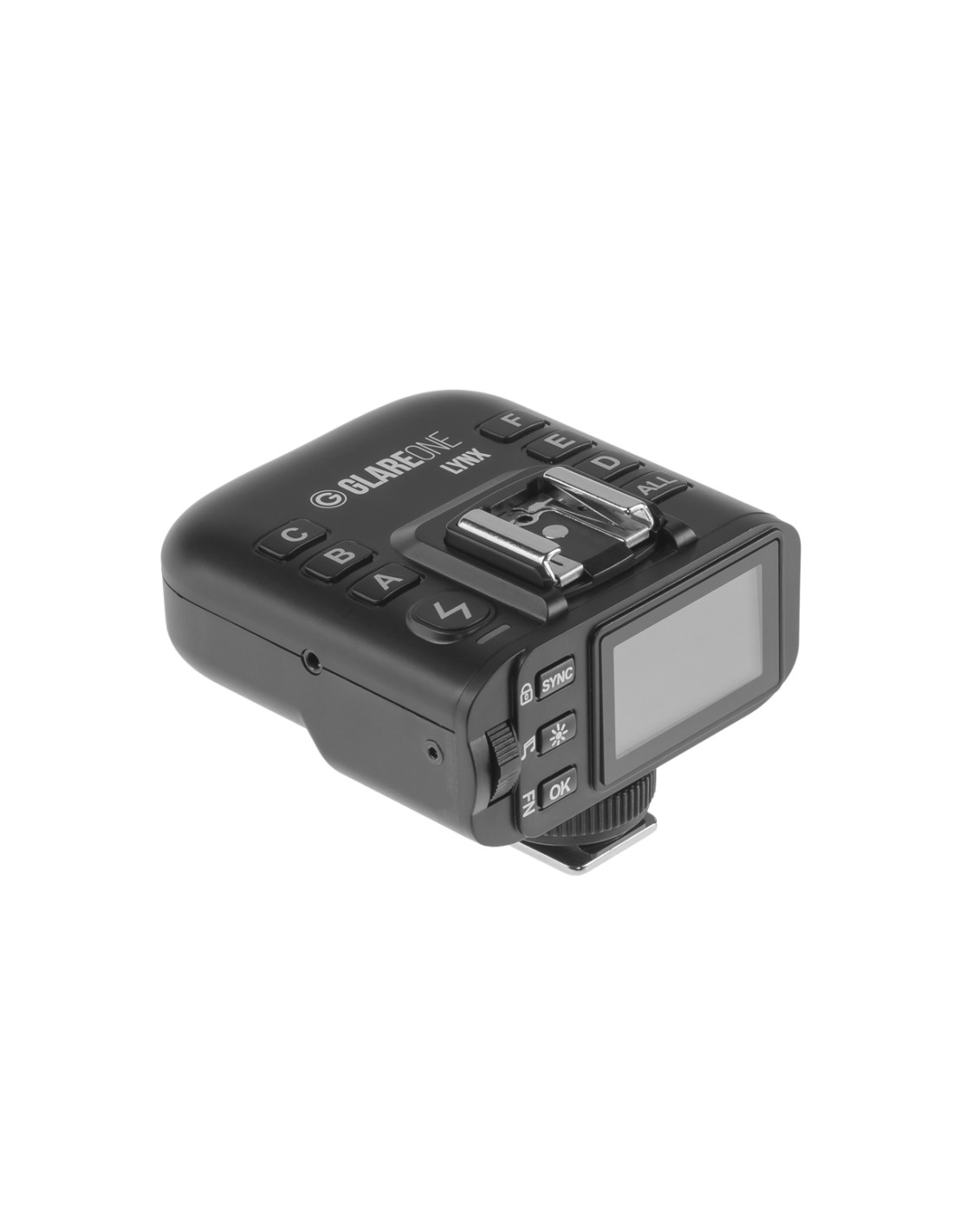

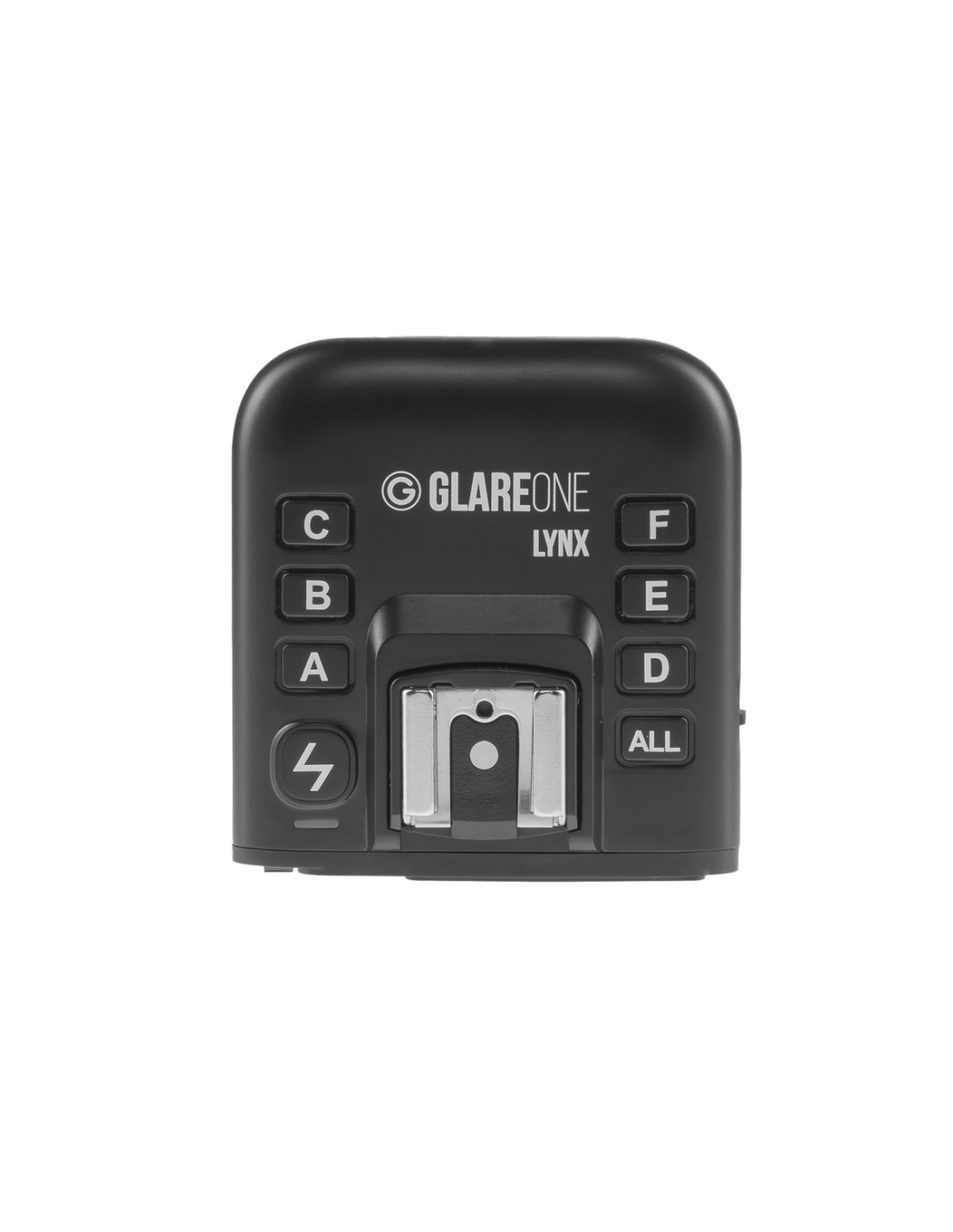

The GlareOne Lynx is an advanced device capable of functioning as a transmitter (default) or a receiver, offering versatility in managing complex lighting setups. The device is equipped with a hot shoe mount on top, allowing you to attach a flash without built-in radio control and trigger it remotely from another GlareOne device in MASTER mode.
Compatibility and Power Supply

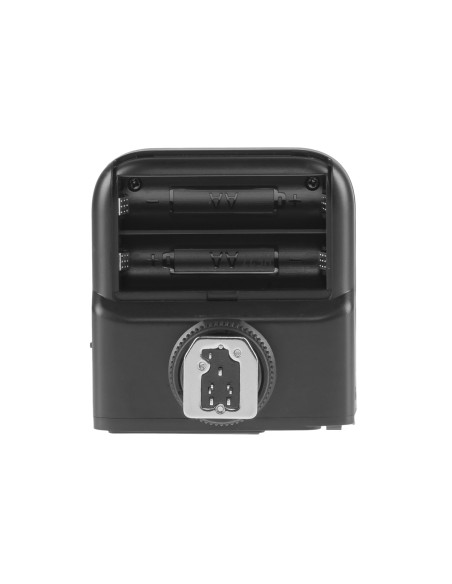

The GlareOne Lynx is compatible with cameras made by Canon, Nikon, Fujifilm, Lumix, and OM SYSTEM, making it a versatile tool for photographers using various systems. It is powered by two AA batteries, providing long operational time and easy battery replacement when needed.
Range and communication
With a range of up to 100 meters and a radio frequency of 2.4 GHz, the GlareOne Lynx ensures stable communication between devices. It supports 6 groups and 32 communication channels.
HSS and TTL
The Lynx supports High-Speed Sync (HSS) up to 1/8000 seconds and TTL, allowing for precise and automatic flash power adjustments to match lighting conditions.
Bluetooth connectivity and GlareOne App
Thanks to built-in Bluetooth connectivity, the GlareOne Lynx can be controlled remotely via the GlareOne app, enhancing convenience and flexibility.
Features of the GlareOne Lynx:
- Dual-function - transmitter and receiver
- Range up to 100 meters
- 2.4 GHz frequency
- 6 groups / 32 communication channels

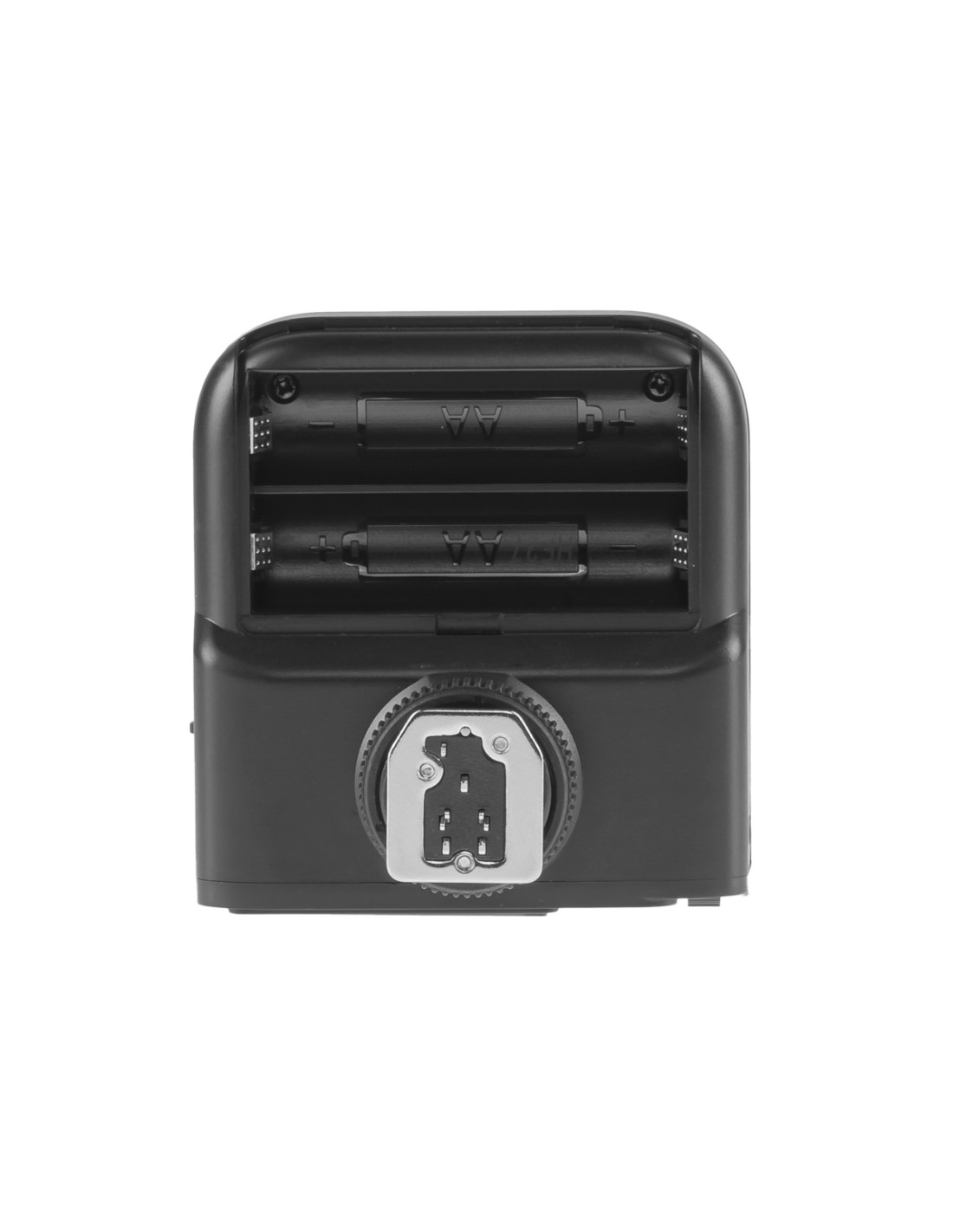

- Powered by 2x AA batteries
- Compatible with Canon / Nikon / Fujifilm / Lumix / OM SYSTEM
- High-Speed Sync (HSS) up to 1/8000 seconds
- TTL support
- Bluetooth connectivity
- GlareOne app integration
The box contains:
1x transmitter
1x user manual
YouTube product presentation
Technical specifications
|
Model |
Lynx |
|
Type |
Wireless flash controller and trigger |
|
Compatibility |
Lynx: Canon / Nikon / Fujifilm / Lumix / OM System Lynx S: Sony |
|
Compatible lights |
Vega, Antares, Apus, Botis |
|
Master mode |
Yes |
|
Slave mode |
Yes |
|
Radio frequency (GHz) |
2.4 |
|
Frequency range (MHz) |
2402 - 2482 |
|
Modulation |
GFSK |
|
EIRP (dBm) |
17 |
|
Antenna energy range (dBi) |
3 |
|
Maximum radio frequency power (mW) |
32 |
|
Range (m) |
100 |
|
Mode |
M / TTL / Sleep |
|
Channels |
32 |
|
Groups |
Master 6 (A-F) / Slave 6 (A-F) |
|
Hot shoe |
Lynx: universal Lynx S: Sony |
|
Maximum flash synchronization time for lights without HSS |
Canon / Fujifilm / Lumix / OM System / Sony: 1/250 s Nikon: 1/320 s |
|
High Speed Sync (HSS) |
Yes, maximum sync time 1/8000 |
|
Bluetooth |
Yes |
|
Freeze mode |
Yes |
|
ZOOM settings |
Yes |
|
Synchronization socket |
Yes, 2.5 mm |
|
Power supply |
2x AA |
|
Operation time |
80h |
|
Dimensions(mm) |
72 x 68 x 53 |
|
Weight (g) |
100 |
|
The parameters given in the above table are indicative, and the actual dimensions of the product may differ slightly from them. |
|
