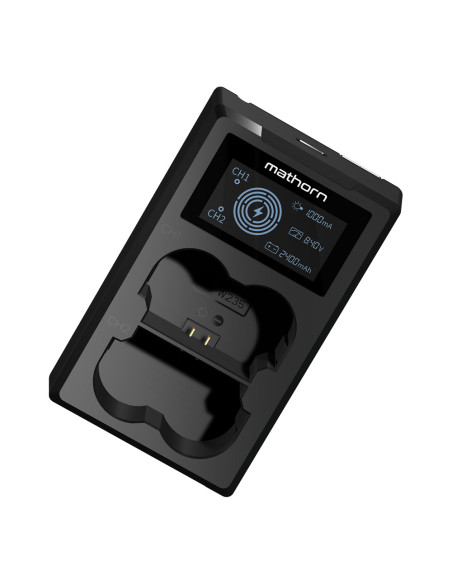

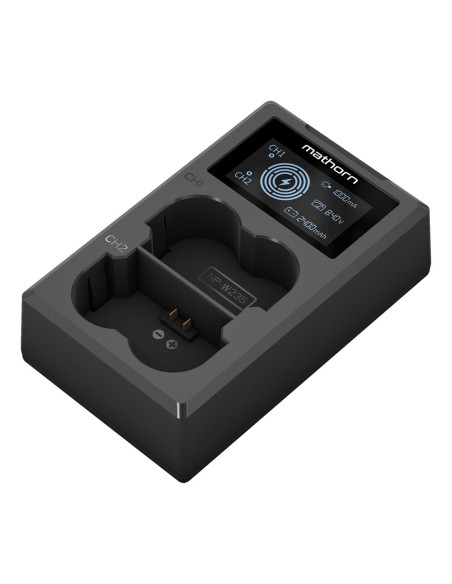

Mathorn dual charger MBC-D230 USB-C for Fujifilm NP-W235
Dual-channel mobile charger with an LCD display and USB power supply
The Mathorn MBC-D230 is a compact, dual-channel charger designed for Fujifilm NP-W235 battery and compatible replacements. It features a backlit monochrome LCD display that provides key information about the charging process, such as voltage, charging current, amount of charge delivered, and a graphical representation of the battery charge level. Importantly, the charger offers a quick way to check the battery charge status, even when not connected to a USB power source. The built-in USB Type-A cable and additional USB-C port provide flexibility for use at home and on the go, allowing you to charge the battery using a power bank, USB port in your car, or even from a laptop.
Modern and Safe Pulsed Charging for Cells
The MBC-D230 charger utilizes a modern pulsed charging method, delivering higher current to the battery in short 5-second cycles. This charging method minimizes the risk of overheating the cells and prevents electrode degradation due to the formation of so-called passivation layers, which are thin coatings that impede current flow and reduce battery efficiency. Pulsed charging extends the lifespan of the cells, resulting in a greater number of charge-discharge cycles throughout the battery's lifespan.
It is worth noting that the pulsed charging process works for both one and two batteries placed in the charger. When charging two batteries, the charging cycles alternate, allowing for full utilization of the charger's available power and reducing charging time.
User safety is always our priority, which is why the Mathorn MBC-D230 charger is equipped with a range of essential protections, including against excessive temperature rise, overvoltage, incorrect battery polarity, and short circuits, making it an exceptionally safe solution for you and your batteries.
Connect the Charger Wherever It’s Convenient, at Home and on the Go

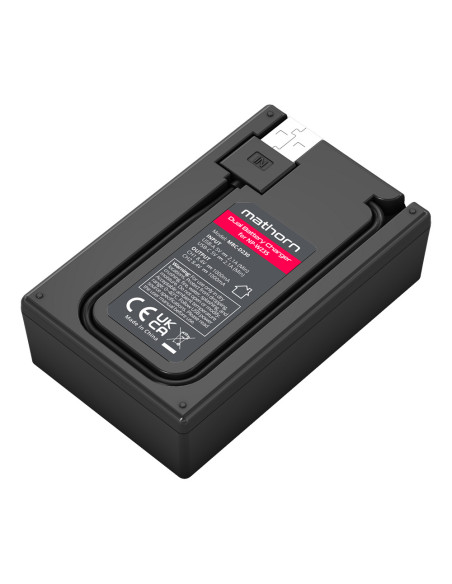

The MBC-D230 charger is powered via a USB port, making it extremely compact and versatile. For user convenience, it features a built-in 18 cm USB Type-A cable that can be tucked away in its casing during transport. This solution ensures that the power cable is always included and readily available when you need it. Additionally, the charger has a USB Type-C port that can be used to power the charger, for example, with a phone charger cable.
Key Features:
- Two channels for fast charging up to 1000mA.
- Utilizes a fast and battery-safe pulsed charging method.
- Equipped with a backlit LCD screen indicating voltage and charging current, the amount of charge delivered to the battery, and a four-segment charge level indicator.
- Includes an 18 cm built-in USB-A power cable.
- Features an additional USB-C port for powering the charger using a phone charger.
- Allows checking the battery charge status even if not connected to USB power.
- Equipped with all necessary protections, including thermal, current, and voltage protections, short circuit protection, and incorrect battery polarity protection.
- Comes with a 3-year manufacturer’s warranty.
