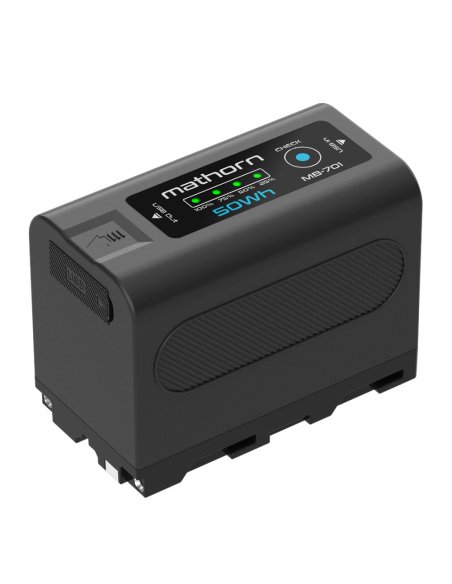

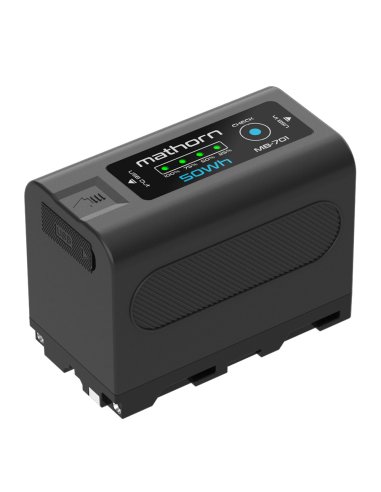

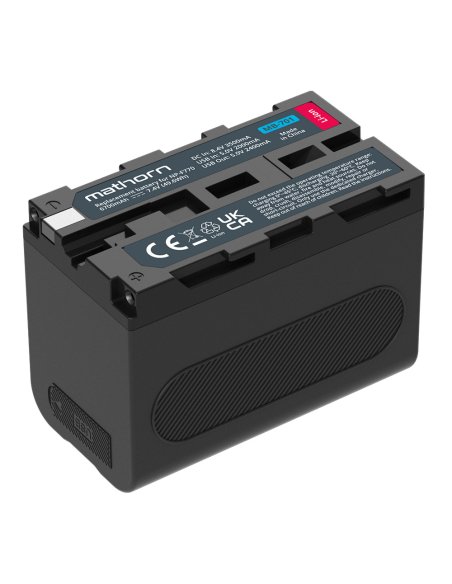

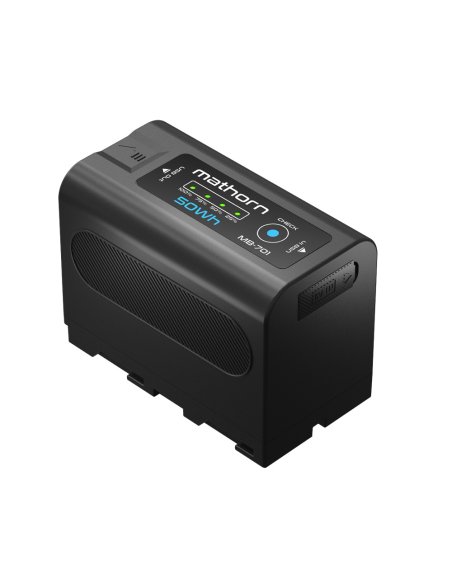

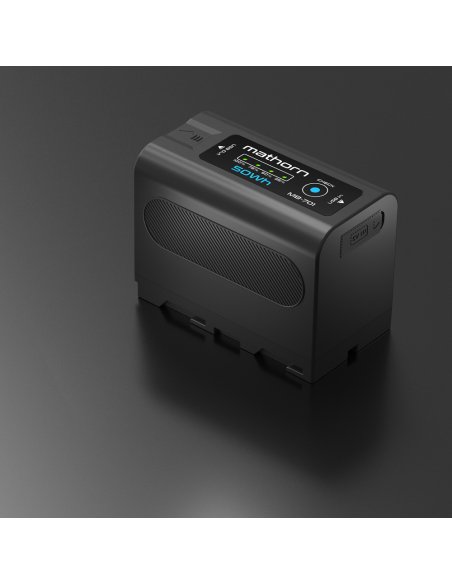

Mathorn MB-701 6700mAh 50Wh USB-C LED for NP-F770
The compact NP-F series battery with USB-C charging and 50Wh capacity
Mathorn MB-701 6700mAh 50Wh USB-C LED is a small but capacious lithium-ion battery equipped with an NP-F connector. Its design uses four high-performance Panasonic NCR18650B lithium-ion cells with a total capacity of 6700mAh and energy of 50Wh. The basic functionality of this battery is the NP-F mount that allows you to power devices with a power of up to 50W. It is perfect for powering devices such as LED panel lights or field monitors. In addition, the battery can act as a power bank thanks to the USB Type A output with a max power of up to 12 watts (5V/2.4A).
Battery charging can be done in two ways. Using the NP-F charger with a standard charging current of 3.35A (28W) or with quick charge mode with a charging current of up to 6.7A (56W). The battery is also equipped with a USB Type-C charging port, which allows you to charge the battery with a current of up to 2.4A (12W).
The battery charge status can be checked via the built-in LED indicator.
The most important features of the MB-701 battery:
-
high-current Panasonic NCR cells with a total capacity of 6700mAh and energy of 50Wh;
-
USB type A output connector 5V/2.4A 12W;
-
USB type C charging connector 5V.2.4A 12W;
-
LED charge indicator;
-
popular and universal NP-F connector;
-
compact size and low weight, only 220 grams;
-
battery capacity and current efficiency verified under real load;
-
withstands up to 500 full charge and discharge cycles;
-
microprocessor BMS control module with thermal, current, voltage and overload protection;
-
3-year warranty period;
Warranty and safety
The service life of the battery is related to various scenarios of its use, which are not always optimal. For this reason, we have equipped each Mathorn battery with all currently used active and passive protections, including overcurrent, overvoltage, short circuit, and temperature protection. They reduce the risk of damage to batteries and connected devices, extending the period of trouble-free operation. Thanks to this, each battery comes with a three-year warranty!
Technical specification:
|
Parameter |
Value |
|
Nominal capacity/energy |
6700 mAh / 50Wh |
|
Voltage nominal/charging |
7,4 V / 8,4V |
|
Power rating for NP-F mount (const/peak) |
50W/75W |
|
Output: USB type A |
5V/2.4A (12W) |
|
Input: USB type C |
5V/2.4A (12W) |
|
Dimensions |
71x39x52mm |
|
Weight |
220g |
