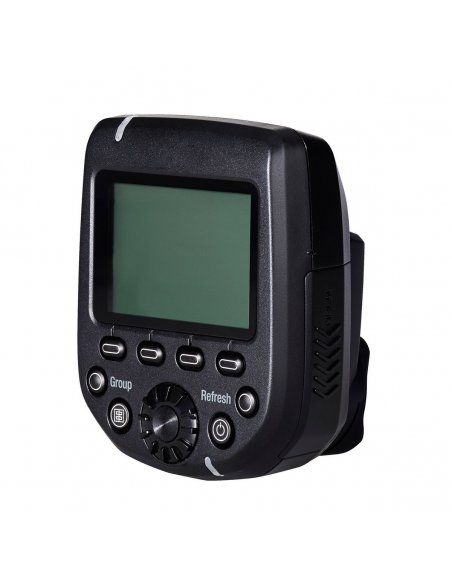

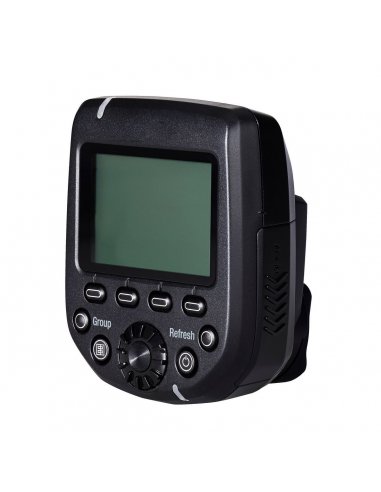

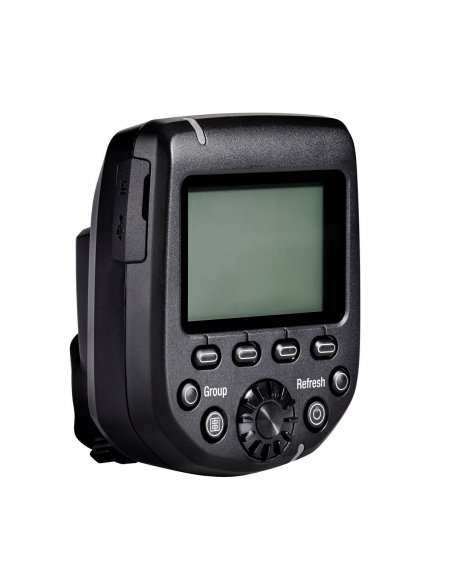

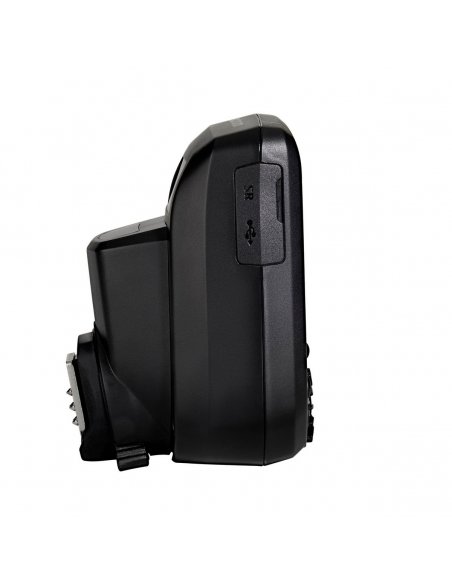

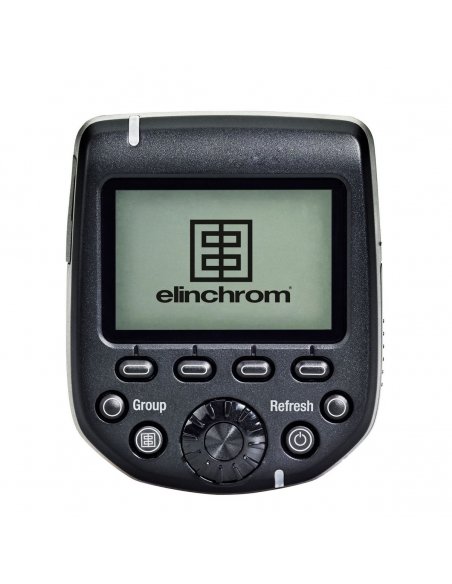

Elinchrom Transmitter Pro for Canon

Box contents:

Enter a new world of unlimited possibilities with the Elinchrom Transmitter Pro

Imagine having all the features you could possibly need in a single transmitter.

Transmitter Pro gives you access to automatic TTL (Through the Lens) light metering, which you can use with Elinchrom lights [1], making your work with lighting much easier. HSS (High Speed Sync) and Hi-Sync are fully automatic and allow for seamless operation even with shutter speeds up to 1/8000 s. With the Transmitter Pro, you’ll be able to freeze dynamic motion, dim ambient light or eliminate it entirely, and use a very shallow depth of field whenever you want. The Elinchrom Pro Transmitter is more than just a flash trigger—it’s the key to a whole new world.

Pick up the pace

Quick setup and real-time display of flash settings on the transmitter screen, along with a 200-meter range, give you full control over your lighting. With Transmitter Pro, you’ll never miss a decisive moment.

Stay up to date

Synchronize any compatible Elinchrom flash with shutter speeds up to 1/8000 s. Manage multiple flashes individually or assign them to groups to add more light or create dynamic lighting on the set. Use TTL auto mode to achieve perfect exposure in  any conditions and achieve excellent results.

Do exactly what you want

Use a wide-open aperture, capture the decisive moment, darken the background, or dim ambient light by remotely controlling and triggering your Elinchrom strobes. The Transmitter Pro opens the door to new possibilities.

Explore and Take Action

The Elinchrom Transmitter Pro is powered by two standard AA batteries, so you can swap them out anywhere and shoot wherever you want, for as long as you want.

Keep everything under control

The large LCD display and easy-to-use navigation menu make this an intuitive and user-friendly transmitter that simplifies and speeds up work with the lights.

Product Features:

• Automatic TTL Flash Power Selection

Transmitter Pro allows you to use TTL flash automation, providing a quick switch to manual (M) mode without losing the light metering results.

• Manual power control

The transmitter allows you to adjust the flash power in manual mode, giving you precise control over the strobes you're using.

• Large LCD screen

The display is large and easy to read even in conditions of strong ambient light (bright sunlight) or low light (backlight). This makes working with multiple lamps at the same time both faster and more efficient.

• LCD backlight in various colors

Depending on the transmitter's operating mode, its LCD screen is backlit in two colors: green for Normal mode and red for Speed Sync mode.

• Workplace Ergonomics

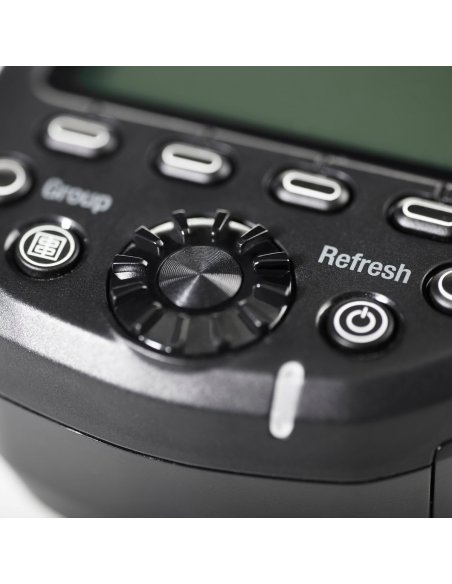

Transmitter Pro is equipped with a set of function keys that provide quick access to the most important settings, which you can easily adjust using the control dial.

• Footrest with a lock

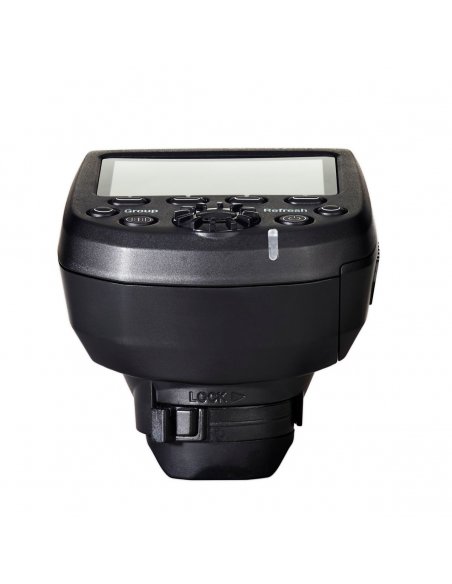

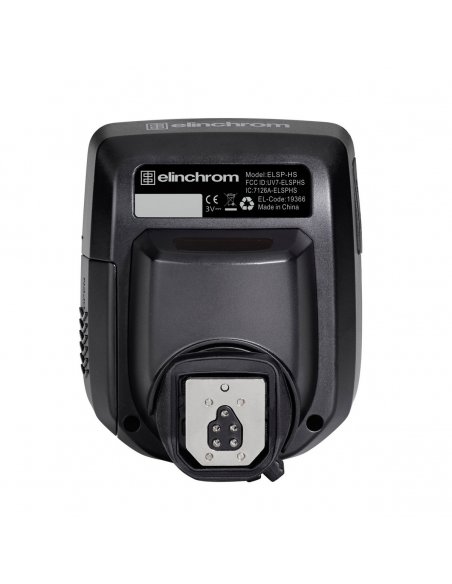

The transmitter's base is surrounded by a rubber gasket and features a quick-release lock that makes it easier to mount on the camera.

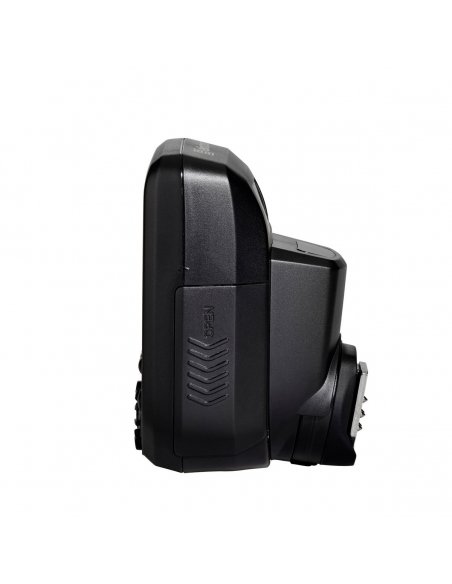

• Powered by AA batteries

The transmitter is powered by standard AA batteries and can operate reliably with both alkaline and rechargeable versions.

• Wired Synchronization

Thanks to the 2.5mm jack sync socket, the transmitter can be used to trigger flash units via a cable.

• Firmware Update

The Mini-USB port allows you to update the system software (firmware).

• Radio Communication Channels

There are 20 communication channels available for each of the transmitter's operating modes (20 in Normal mode and 20 in Speed Sync mode)

• Groups

The transmitter can control 4 groups of lights (A, B, C, D) individually on each communication channel, or all of them simultaneously (ALL)

• Flash Synchronization Modes

The transmitter has three flash synchronization modes:

- Automatic Hi-Sync / HSS up to 1/8000 s

- second-curtain sync [2]

- ODS (Over-Drive-Sync), which allows for flash delay (from 0.1 to 5.0 ms)

• Triggering the pilot flash[3]

Activating the pilot flash helps with autofocus. There are two ways this works:

- Shutter - pressing the shutter button triggers the flash

- DOF - Pressing the depth-of-field preview button triggers the flash

• Autofocus assistance [4]

Transmitter Pro is equipped with an autofocus assist system that makes it easier to work, especially in low light.

• Remote Control of Lamp Power

The transmitter allows you to remotely adjust the flash output of compatible Elinchrom strobes, as well as turn the modeling lights on and off for strobes assigned to groups.

• Sleep and Auto-Off Features

In the settings menu, there is an option to set the idle time after which the transmitter will enter sleep mode or automatically turn off to conserve battery power.

Restoring Factory Settings

In a pinch, you can easily restore the factory settings, which is useful when experimenting or when the transmitter is used by multiple people.

Technical Specifications for Transmitter Pro for Canon:

Footnotes:

[1] - For automatic TTL light metering to work properly, the flash must be compatible with the Transmitter Pro and have a TTL function.

[2] - Not available in the Sony version

[3] - Not available in the Sony version

[4] - Not available in the Nikon version

[5] - Does not work with certain models from all brands

[6] - EL lamps with a connected RX transceiver module

[7] - Some older Elinchrom flash models may have a limited operating range

[8] - Battery life depends on the battery's quality, condition, type, and how frequently the transmitter is used.
