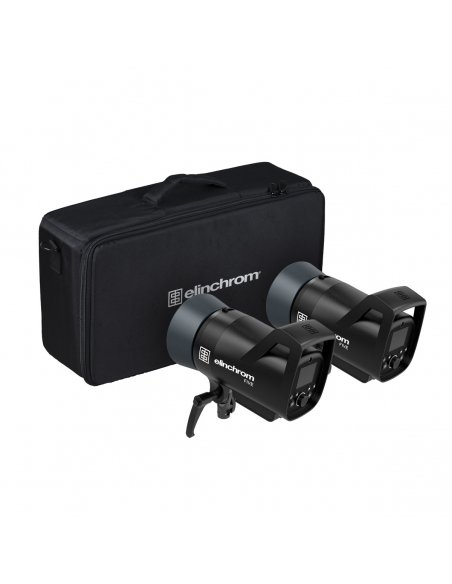

Elinchrom FIVE - Battery Monolight Dual Kit
A set of two compact Elinchrom FIVE lamps with battery power and a carrying case.
Box contents:
| 2x | Elinchrom FIVE Monolight | |
| 2x | Elinchrom FIVE Battery | EL20962 |
| 2x | Elinchrom Wide Reflector 16 cm | EL26170 |
| 2x | Elinchrom 65W USB-C Wall Charger | EL11052 |
| 1x | Elinchrom Elinchrom Storage Bag | Electronics and Electrical Engineering 33236 |
| two-year manufacturer's warranty |
Product Features:
- Active Charging Feature
You can plug the lamp into a power source and use it just like a regular studio lamp, while maintaining top-notch charging speed and performance. At the same time, the FIVE will charge its battery so that it’s always fully charged and ready for outdoor use.
- Replaceable battery
The high-capacity battery allows for up to 450 full-power flashes, providing tremendous flexibility and independence.
- USB-C charging port
The battery can be charged from any power source equipped with a USB-C port, so you don't need any special cables or chargers.
- Durable and reliable
The Elinchrom FIVE is a flash designed for long-term, intensive use. Its advanced cooling system allows it to reach full power in 1.6 seconds, with no limits on the number of flashes or operating time.
- Mounting Elinchrom Accessories
You can attach a wide variety of light-shaping accessories to the lamp, including reflectors, softboxes, umbrellas, spotlights, and many others.
- 26 W Bi-Color LED Pilot Light
The LED pilot light module allows you to adjust the color temperature within a range of 2,700 to 6,500 Kelvin (CRI up to 94, 4,000 lumens).
- Flash sync up to 1/8000 s (HSS)
Synchronization with any shutter speed offers more creative possibilities, allowing you to shoot with wide-open apertures and control ambient light in any conditions.
- Automatic TTL Flash Power Selection
The Elinchrom FIVE allows you to use TTL flash automation and quickly switch to manual (M) mode without losing the light metering results.
- Pro-Active Cooling Intelligent Cooling System
The lamp “learns” your work style—its intensity and pace—and, based on this information, adjusts the cooling system to ensure maximum efficiency and charging speed.
- Built-in Bluetooth communication module
You can control the flash settings using the Elinchrom Studio App installed on your phone or tablet.
- Wide range of flash power adjustment
FIVE allows you to adjust the flash output within a range of 7 f-stops, making it simple and intuitive to achieve a shallow depth of field in the studio.
- Action Mode
In action mode, the flash duration is very short, which in turn allows you to freeze fast-moving objects in the frame.
- Color-coded group indicator on the housing
Each group of lamps has its own unique color, which is displayed on the housing. This makes working with multiple lamps at the same time faster and more efficient.
Elinchrom FIVE Technical Specifications:
|
Flash energy (Ws/J) |
522 |
|
|
Aperture value f (1 m, ISO 100, HP Reflector 26 cm) |
90.4 |
|
|
Aperture value f (2 m, ISO 100, HP Reflector 26 cm) |
32.8 |
|
|
Flash power adjustment range in f-stops |
7 |
|
|
Flash power adjustment (Ws/J) |
7 - 522 |
|
|
Precision of flash power adjustment in manual mode (M): In TTL automatic mode: |
every 1/10 of a degree every 3/10 of a degree, from -3.0 to +3.0 |
|
|
Duration: t0.1 flash for min/max power in Normal mode |
1/1800 s – 1/200 s |
|
|
Time elapsed. Flash duration t0.1 for min/max power in Action mode |
1/8080 s - 1/250 s |
|
|
Recovery time for min/max flash power |
0.01 s / 1.6 s |
|
|
Operating Modes |
Manual / TTL / HSS |
|
|
Normal Flash Mode |
Flash Stability Priority |
|
|
Action Flash Mode |
Flash Duration Priority |
|
|
TTL mode / HSS mode |
Tak |
|
|
Color temperature at full flash power |
5,600 K in Normal mode 5,900 K in Action mode 5,500 K in HSS mode |
|
|
Color temperature stability (in all modes) |
±200 K |
|
|
Flash power stability (in all modes) |
±0,5 % |
|
|
Automatic power dumping |
Tak |
|
|
Active cooling |
Tak (Smart Pro-Active Cooling) |
|
|
Input jack |
USB-C |
|
|
Flash burner (replaceable) |
Product code: 24092 |
|
|
Protective dome |
screw-on (3x Torx TX10) |
|
|
Wired Sync Port Voltage |
5 V |
|
|
Wired Sync Port |
3,5 mm Jack |
|
|
Battery |
Li-ion 82 Wh / DC 14.4 V |
|
|
Battery life at min/max flash power(0% pilot light) |
14600 / 450 |
|
|
Battery life at min/max flash power (100% pilot light) |
6000 / 350 |
|
|
Battery Charge Status Indicator |
on the housing |
|
|
Charging time (USB-C charger / 65 W) |
Battery in the lamp: 80% - 1 hour 10 minutes 100% - 1 hour 35 minutes |
|
|
Pilot Light Operating Modes |
ON/OFF, FREE, PROP, VFC |
|
|
Pilot light intensity |
26 W / 4,000 lm / CRI 91–94 |
|
|
Color temperature |
2,700 K – 6,500 K |
|
|
Operating time of the pilot lamp at min/max power (without flashing) |
30 h / 2 h 15 min |
|
|
Skyport Module (built-in) |
20 channels / 4 groups |
|
|
Skyport operating range (Transmitter PRO, in M mode) |
Indoors: up to 60 m In open areas: up to 200 m |
|
|
Bluetooth (built-in) |
Version 4.2 |
|
|
Accessory Holder |
Elinchrom |
|
|
Umbrella mount (central) |
7–8 mm |
|
|
Dimensions |
26.3 x 16.7 x 28 cm |
|
|
Weight with battery/without battery |
3/2.4 kg |
|
