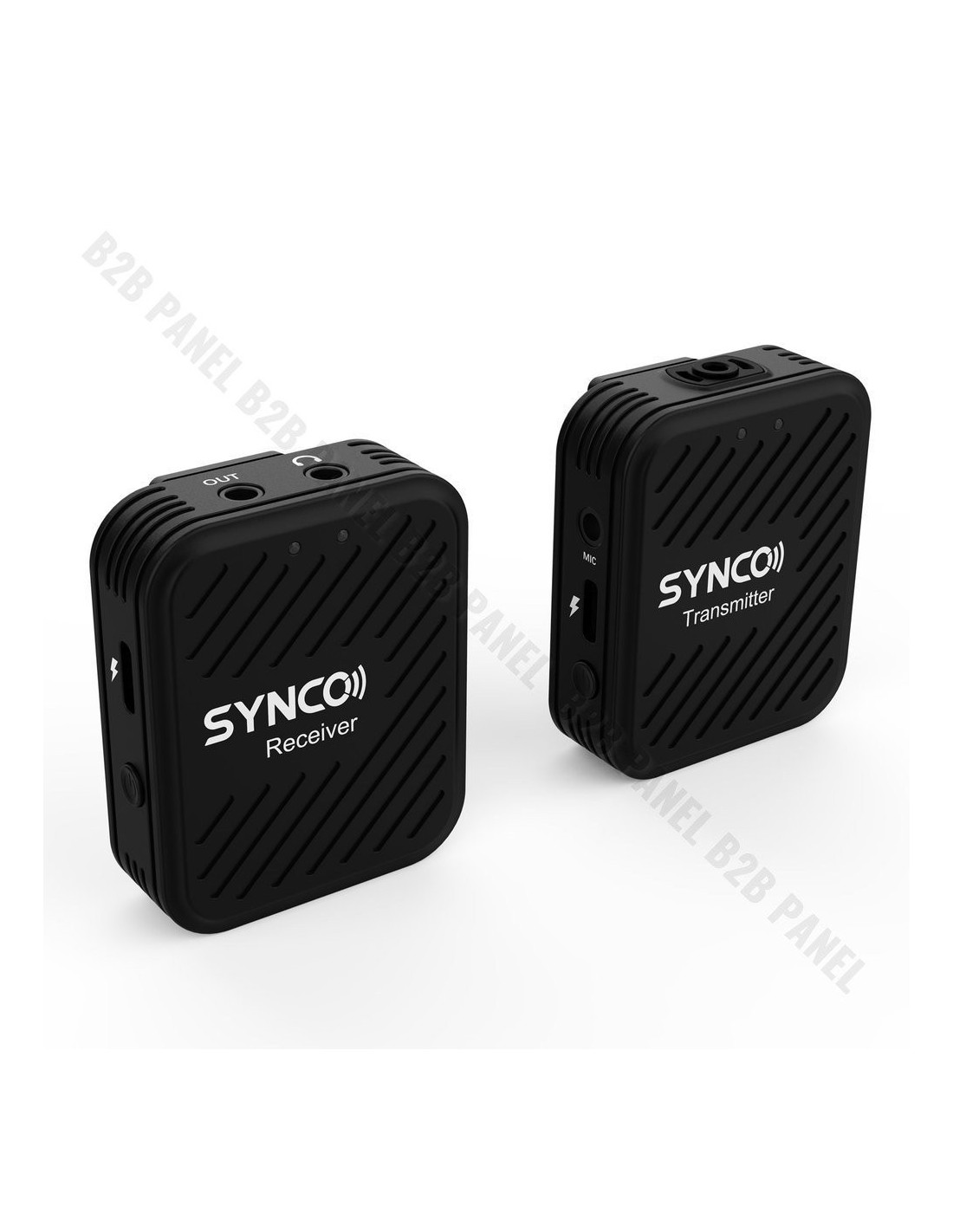

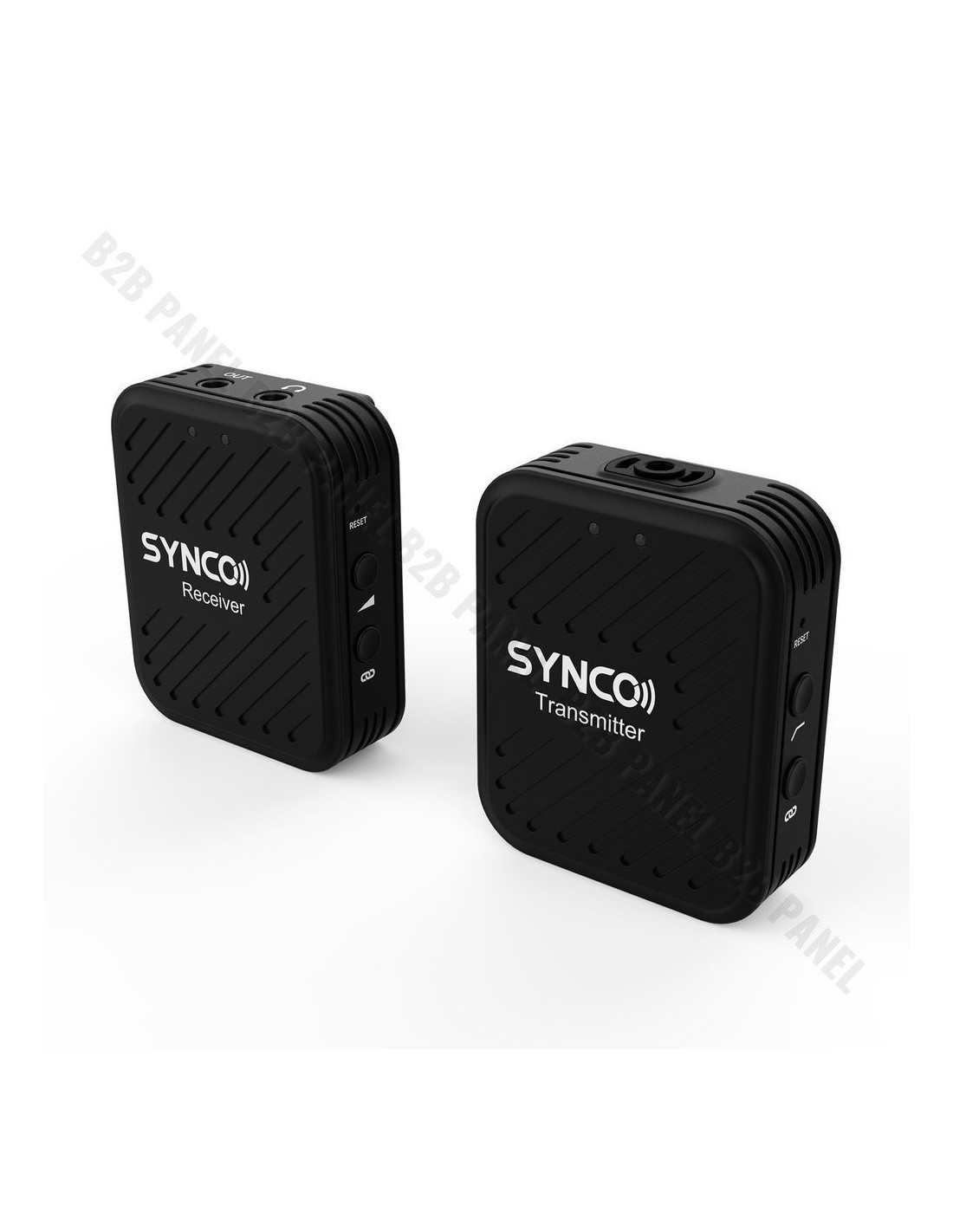

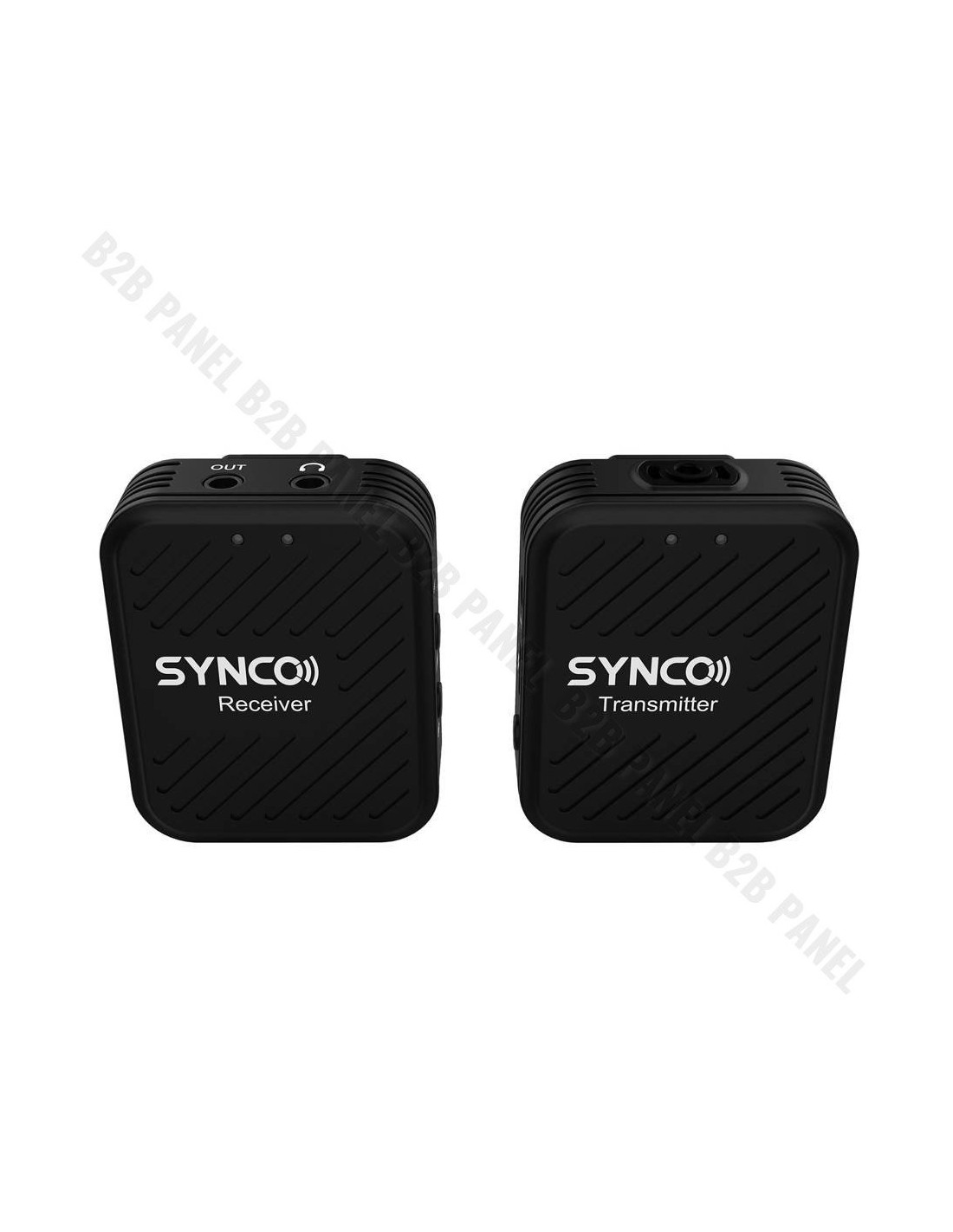

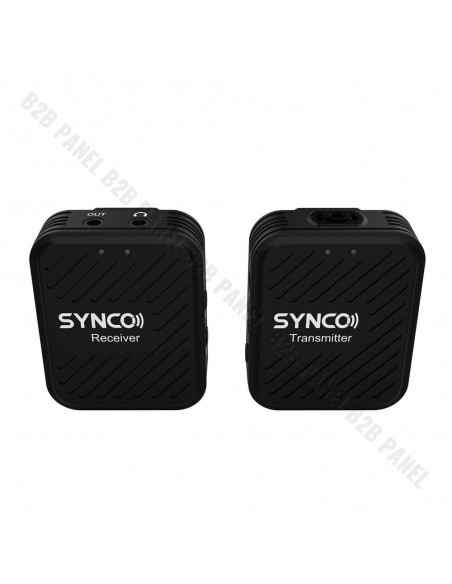

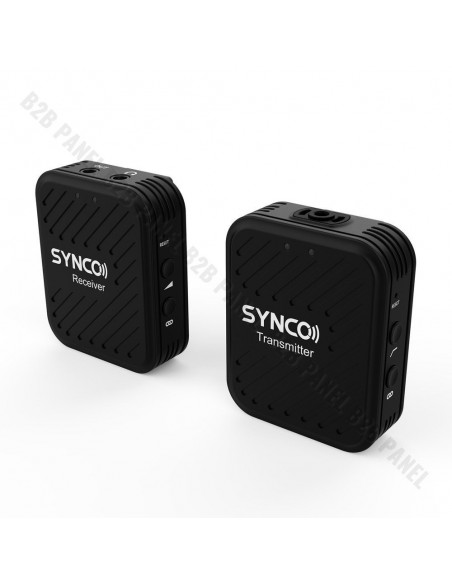

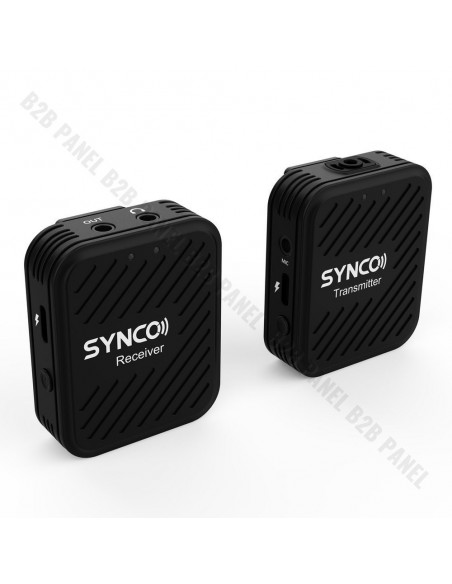

SYNCO G1(A1) is a 1-trigger-1 professional wireless clip on microphone at 2.4 GHz. The encrypted transmission, powerful transmitter and one-to-one concentrative response, optional low cut filter as well as gain control, varied color choices, and long battery life make it excellent for stage performance, speeches, and vlog.
SyncoderTM Encrypted Transmission Algorithm
The unique SyncoderTM Encrypted Transmission Algorithm, based on the Frequency Hopping Spread Spectrum (FHSS), is built into this clip on microphone wireless at 2.4G to allow 128-bit encrypted signal transmission and automated channel change. An audio system that is safe, stable, and hassle-free ensures the precise pickup of audio signals. It requires no licensing and frequency mandating and offers a strong signal wherever.
Steady Transmission Even When the Distance is 150m
The powerful microphone transmitter and one-to-one concentrative response conduce to more reliable signal transmission and longer working range.
G1(A1) digital wireless microphone transfers distortionless signals within 492ft/150m (Line-Of-Sight) and still works smoothly within 164ft/50m even when the environment is challenging.
First DSP Wireless Microphone
G1(A1) is allowed to process audio in real time thanks to the DSP (= digital signal processor) which is used in SYNCO clip on wireless microphone for the first time.
Analog signals collected by the transmitter are switched to digital signals for audio re-calibration, and the processed audio is delivered to the receiver immediately. Hence, the post-processing will not take much time and the audio performance is ensured to stay high quality.
True Adjustment for Clear, Clean Sound

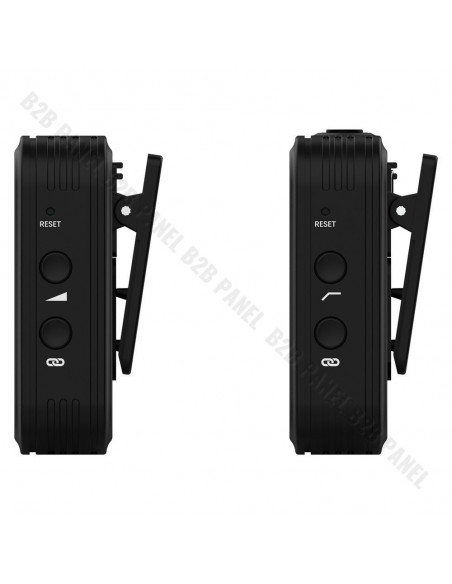

SYNCO G1(A1) provides a low cut filter to remove noises below 180Hz which are caused by wind, air conditioners and traffic. On the receiver, the gain control button ranging from Level o to Level 4 with a total of 8dB improves signal levels easily and effectively. The 3.5mm TRS headphone jack offers a way to monitor sound in real time and any adjustment can be made accordingly. All this guarantees clean and clear sound output.
Big Battery Capacity to Support All Day Long

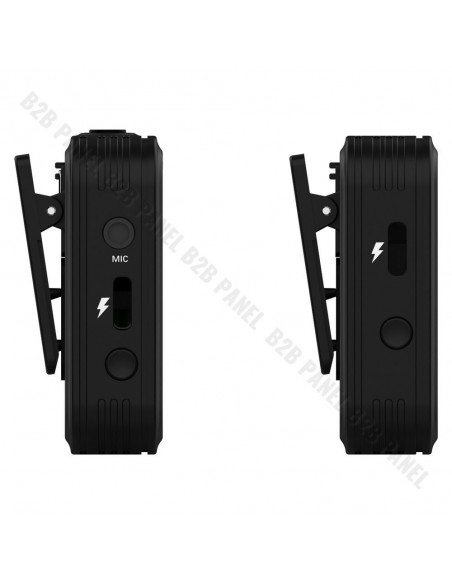

A 400mAh chargeable Li-ion battery is built in G1(A1) to support 8 hours of recording if condition allowed. This professional wireless microphone clip on shirt can be charged when working and can get 50% power in just 40 mins and 80% in 1 hour based on a special technical solution. Its status is seeable on the power indicator which flashes to tell low battery, stays green when charging and is off when fully charged.
Small Device with Strong Compatibility

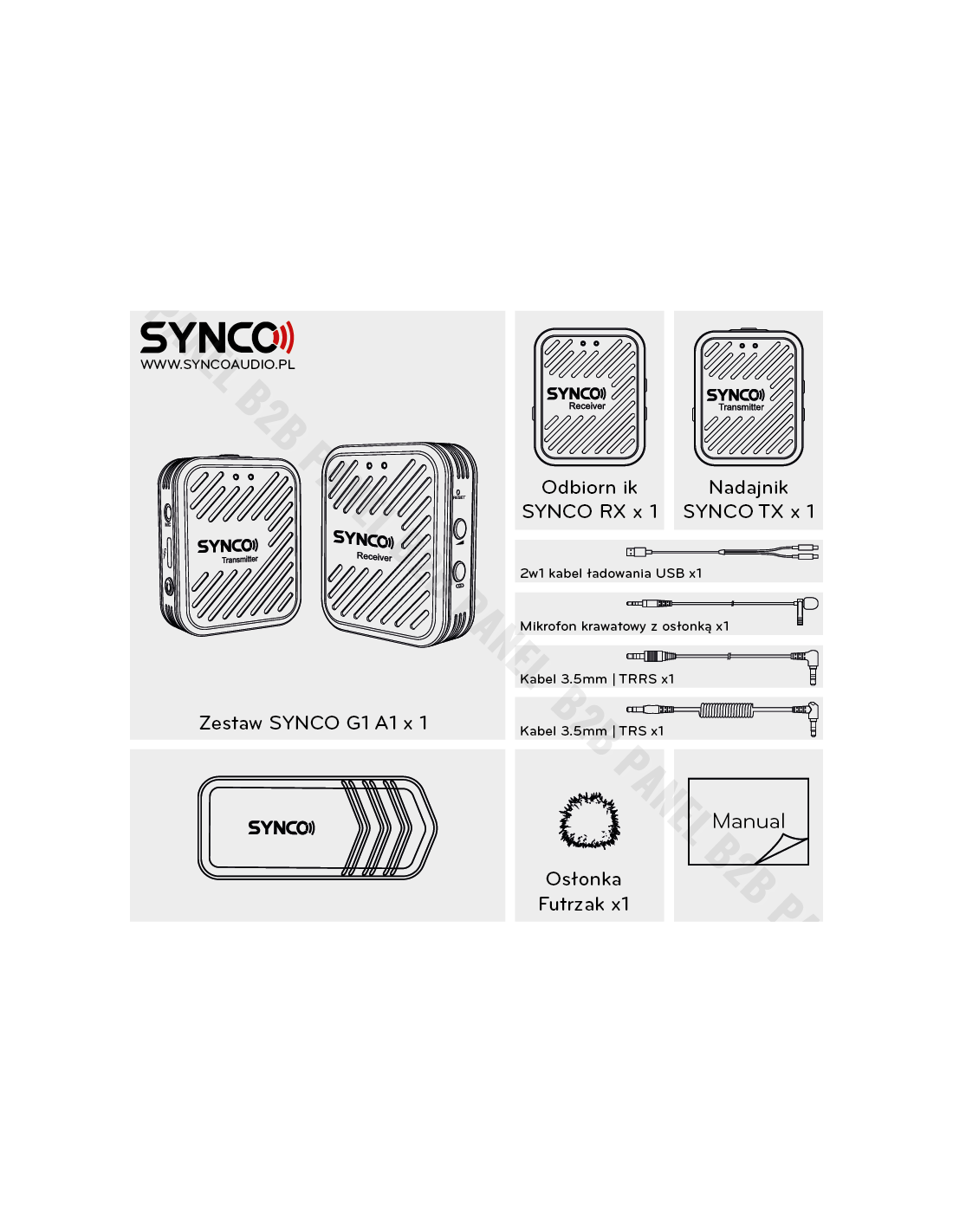

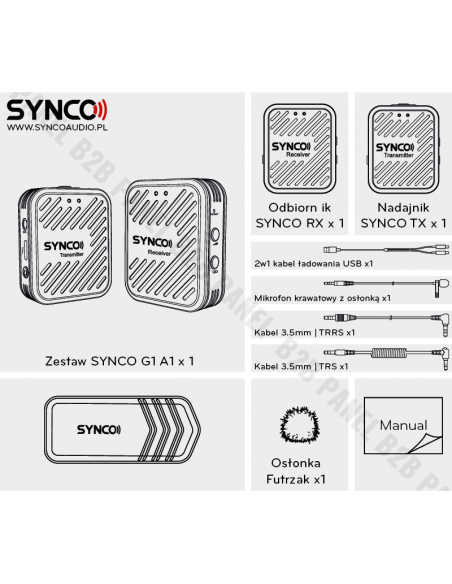

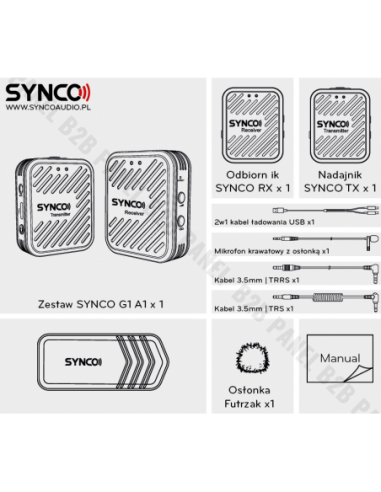

The pocket-sized wireless clip on microphone system is a camera- and collar-fixable device to hide away from eyes when recording. Its receiver has a 3.5mm TRS audio output to accept the included 3.5mm TRRS/TRS cables, thus applicable to nearly every 3.5mm input camera & camcorder, as well as Android/ iOS mobile device.
Specifications
Transmitter (TX)
- Wireless Transmission Digital 2.4GHz
- RF Frequency Band 2400-2483.5MHz
- Working Distance 492ft/150m (LOS area), 164ft/50m (NLOS area)
- Latency 12.5ms

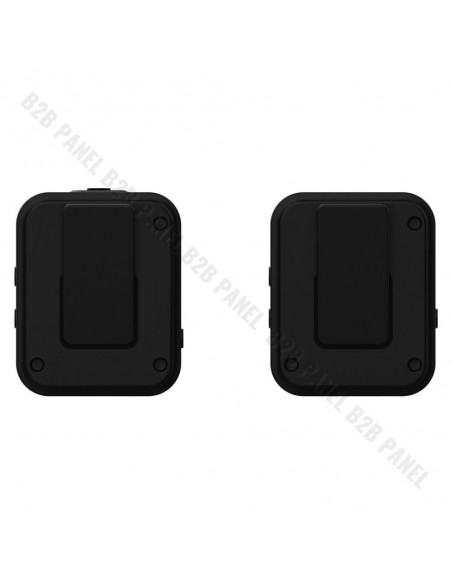

- Mounting Pocket Clip
- Audio Input 1/8" / 3.5 mm TRS Mic Input
- Audio Input Level 1V (0dBV)
- RF Output Power ＜10mW
- Power Requirement 3.3V-4.7V
- Battery Type Built-in Lithium Battery
- Battery Charging Time 1.5h
- Battery Life 8h
- Dimensions 52X42X16mm
- Material Plastic
- Weight 35g
Receiver (RX)
- Wireless Transmission Digital 2.4GHz
- RF Frequency Band 2400-2483.5MHz
- Approximate RF Sensitivity -81dBm
- Working Distance 492ft/150m (LOS area), 164ft/50m (NLOS area)
- Latency 12.5ms
- Mounting Pocket Clip
- Number of Audio Channels 1
- Audio Output 1/8” / 3.5 mm TRS Mic Output, 1/8“ / 3.5 mm TRS Headphone Output
- Gain 0-4 Level (0 to 8dB)
- Power Requirement 3.3V-4.7V
- Battery Type 3.3VBuilt-in Lithium Battery, 400mAh-4.7V
- Battery Charging Time 1.5h
- Battery Life 8h
- Dimensions 52X42X16mm
- Material Plastic
- Weight 35g
Microphone
- Form Factor Built-in/External Mic
- Sound Field Mono
- Polar Pattern Omnidirectional
- Frequency Response 50Hz-20KHz
- Sensitivity -40dB (±3 dB, re 1V/Pa at 1KHz)
- Max. Input SPL 135dB SPL (at 1KHz)
