TT-CB-5-150-AL-1 818373021276


For years, traditional tripods have suffered from needless bulk and wasted space. We spent 4 years redesigning the tripod from the ground up, creating a travel tripod that packs down to the diameter of a water bottle—without compromising height, stability, or features.

Radically faster to setup and takedown, our tripod features ergonomic adjustment points, built-in mobile compatibility, and thoughtful details at every turn. Plus, it’s built for life on the road: durable, 100% serviceable, and backed by the Peak Design lifetime guarantee.

Tripod includes legs, ballhead, protective soft case, ARCA-compatbile Standard Plate, mobile mount, hex tool with carrying clip, and bushing removal tool for maintenance. See Specs section below for details.

PRO PERFORMANCE. HALF THE SIZE.

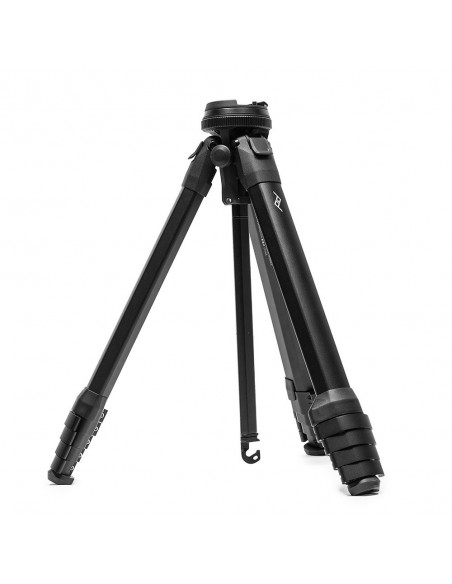

The Travel Tripod brings you pro-level stability, load capacity, and deployed height, yet packs down to the diameter of a water bottle. A ground-up redesign of the traditional tripod, the Travel Tripod is the result of 4 years of engineering.

GROUNDBREAKING ARCHITECTURE

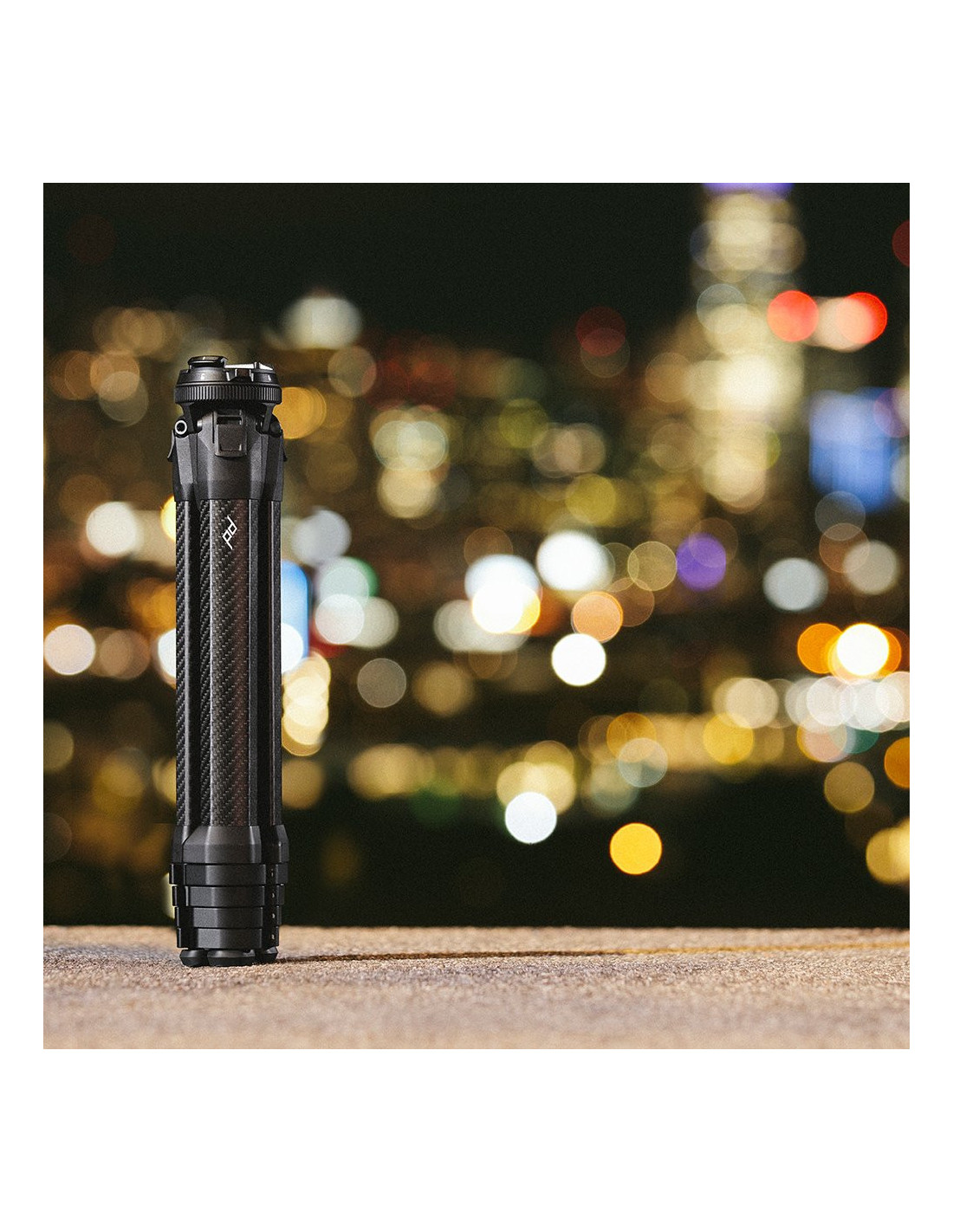

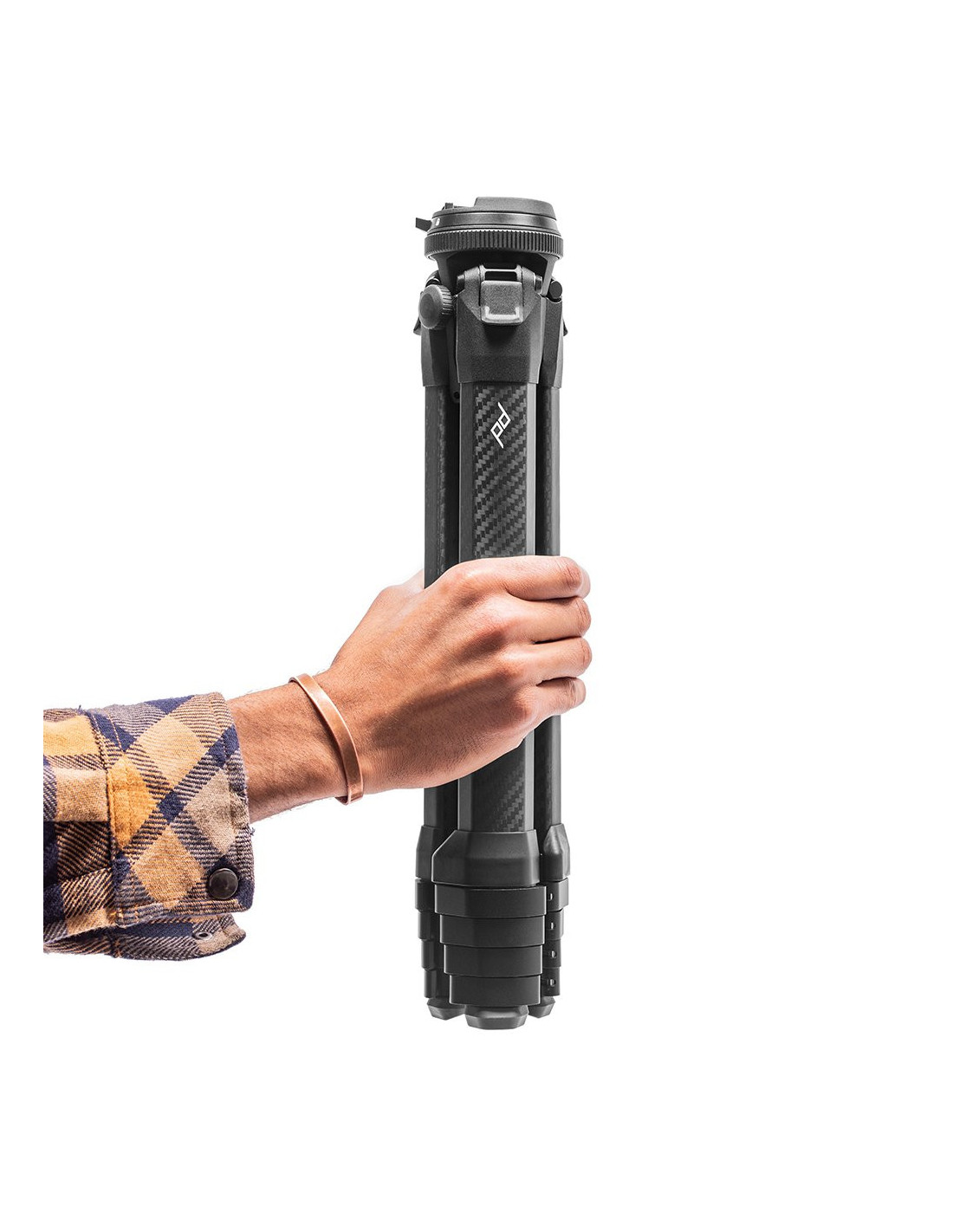

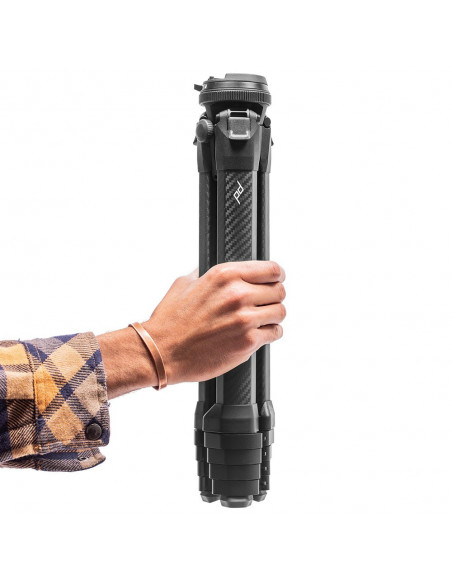

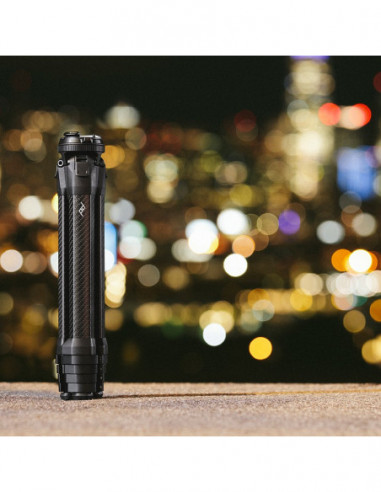

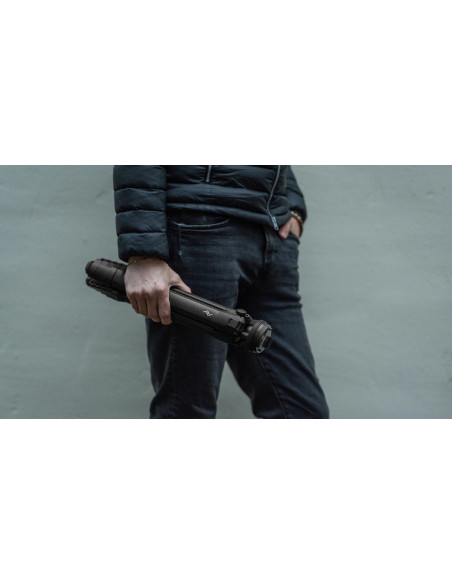

Spatially efficient design eliminates wasted volume when packed down. Packs down to the diameter of a water bottle. No protruding knobs.

LIGHTNING-FAST DEPLOYMENT

  • Unique design allows quicker, easier setup/takedown.
  • Secure, fast, and ergonomic camera quick release.

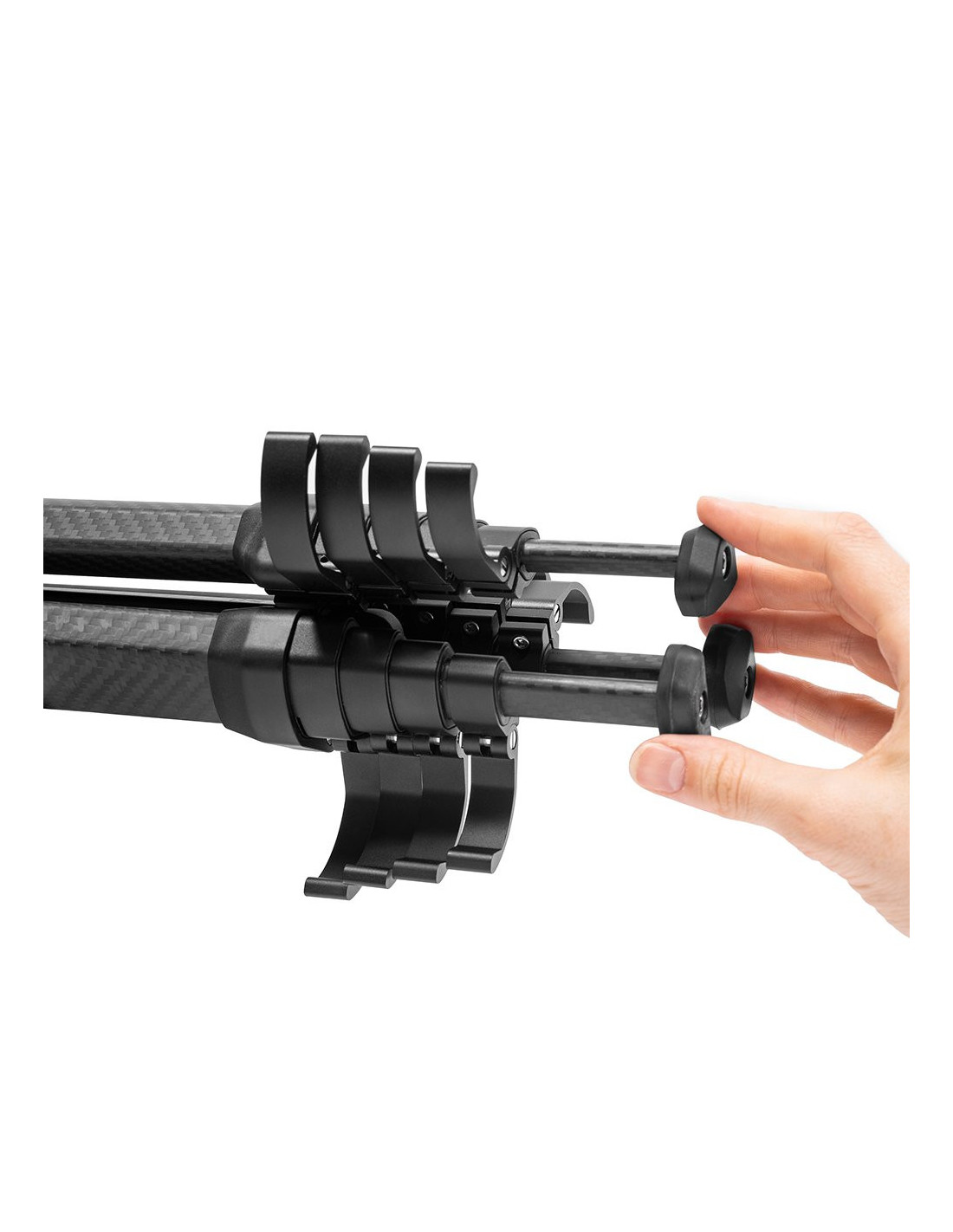

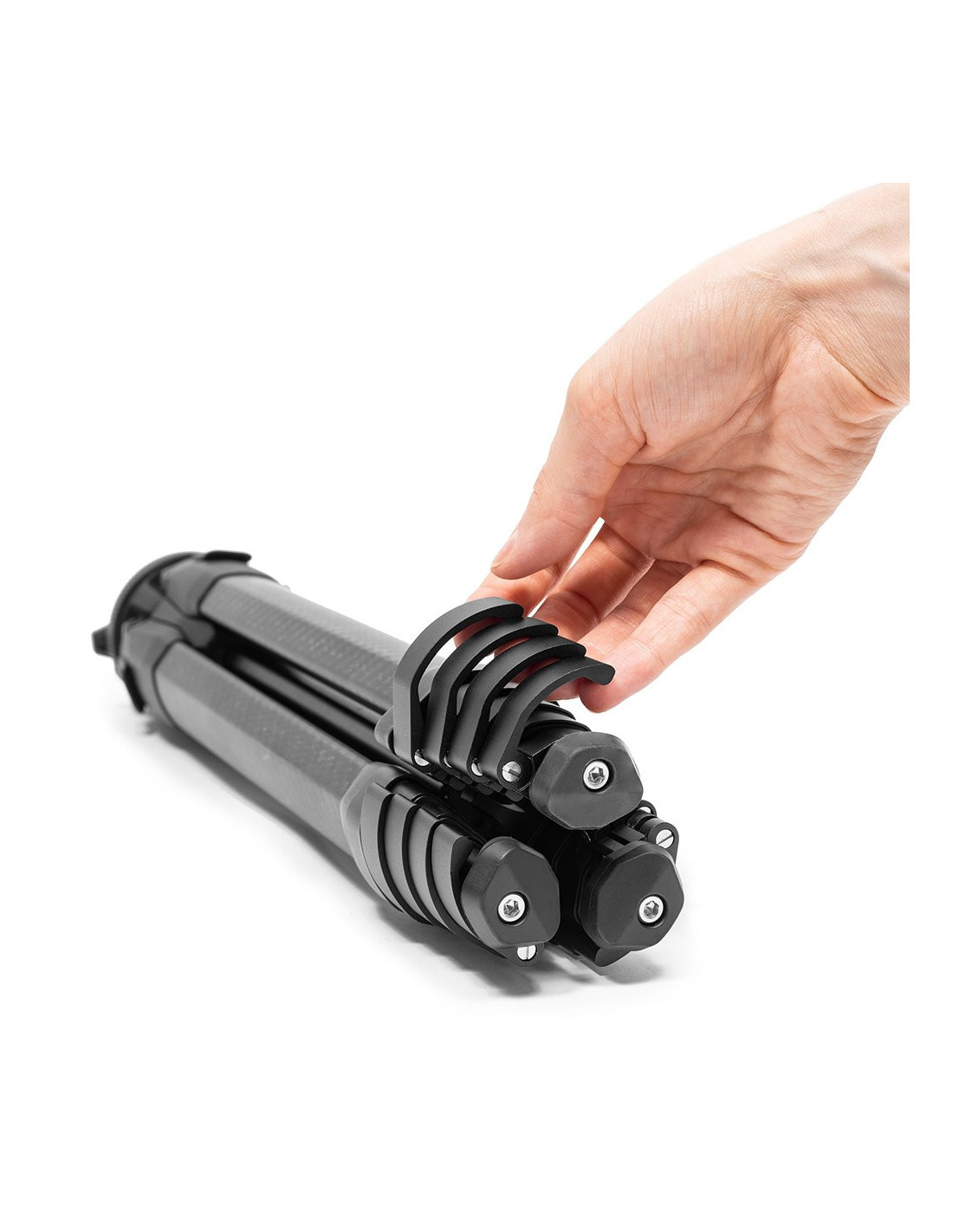

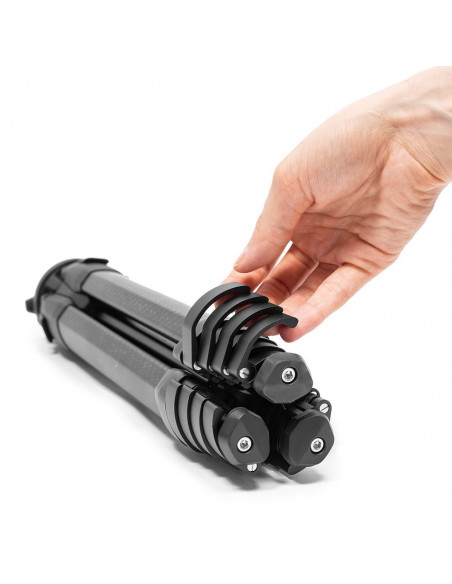

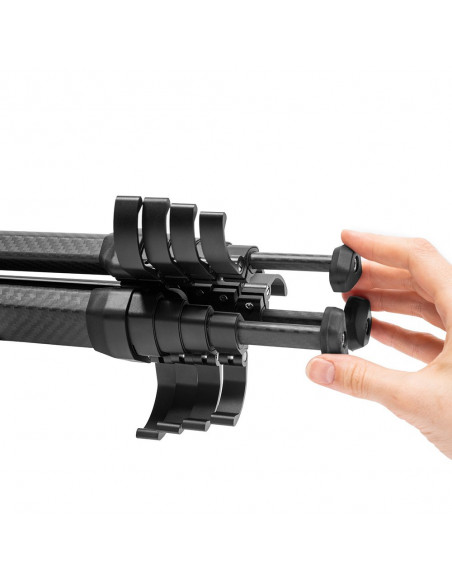

  • Fast-locking, low profile leg cams.
  • Legs deploy in seconds, without having to flip over like traditional travel tripod legs.

PRO-LEVEL STABILITY & FEATURES

  • 20lb weight capacity (optimized for a full-frame DSLR + telephoto lens).
  • Stability and vibration damping performance comparable, if not better, than most tripods in its class.

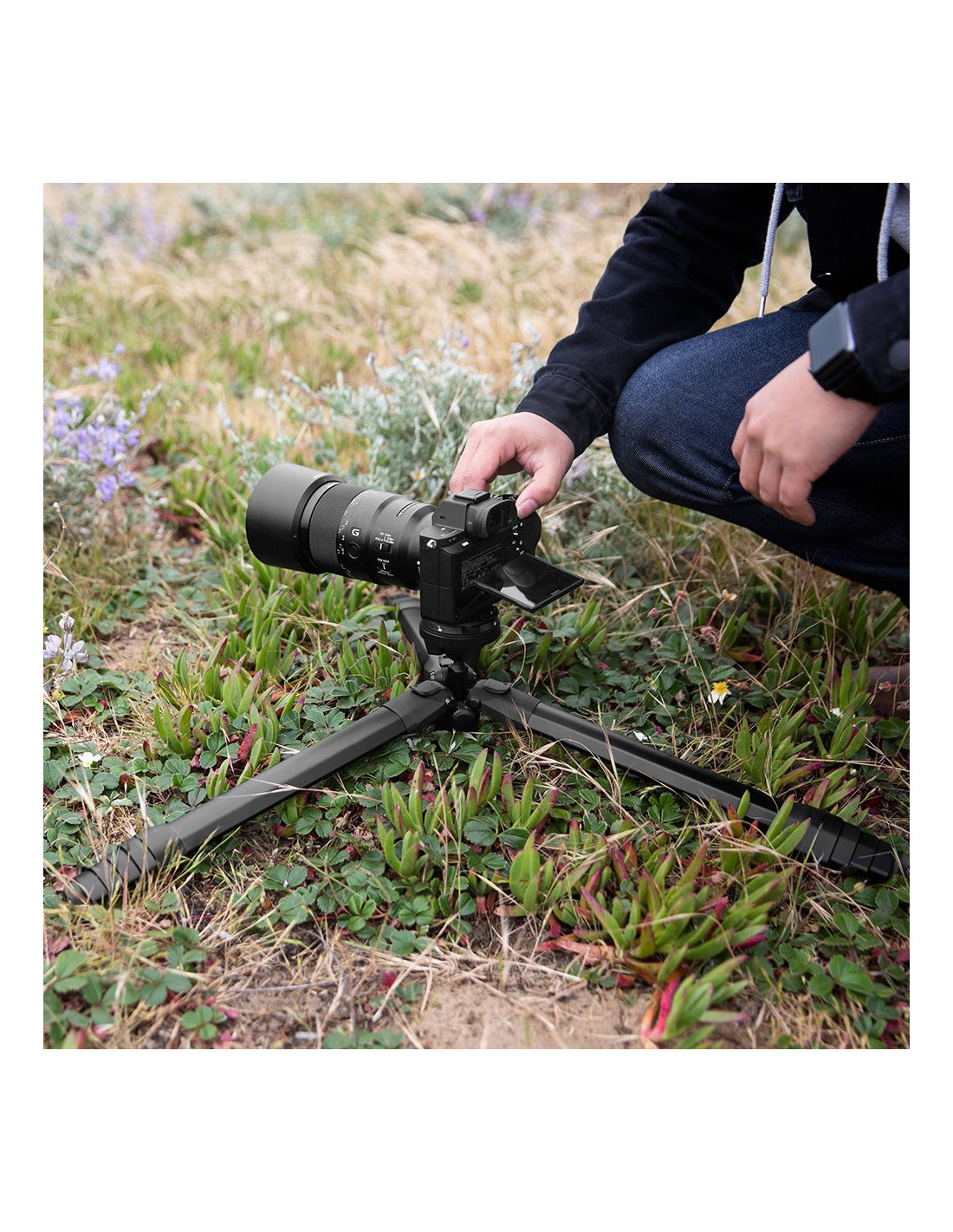

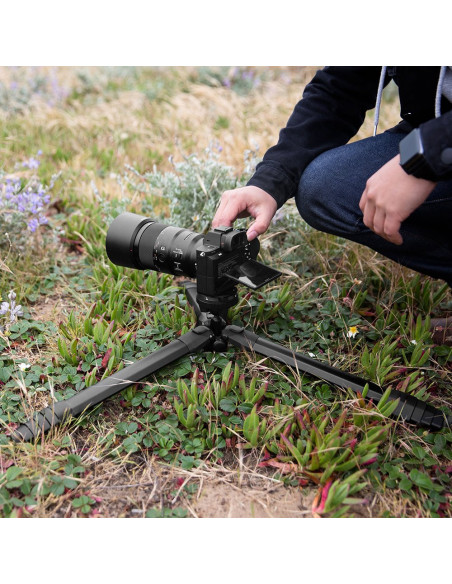

  • Low and inverted modes position your camera inches off the ground.

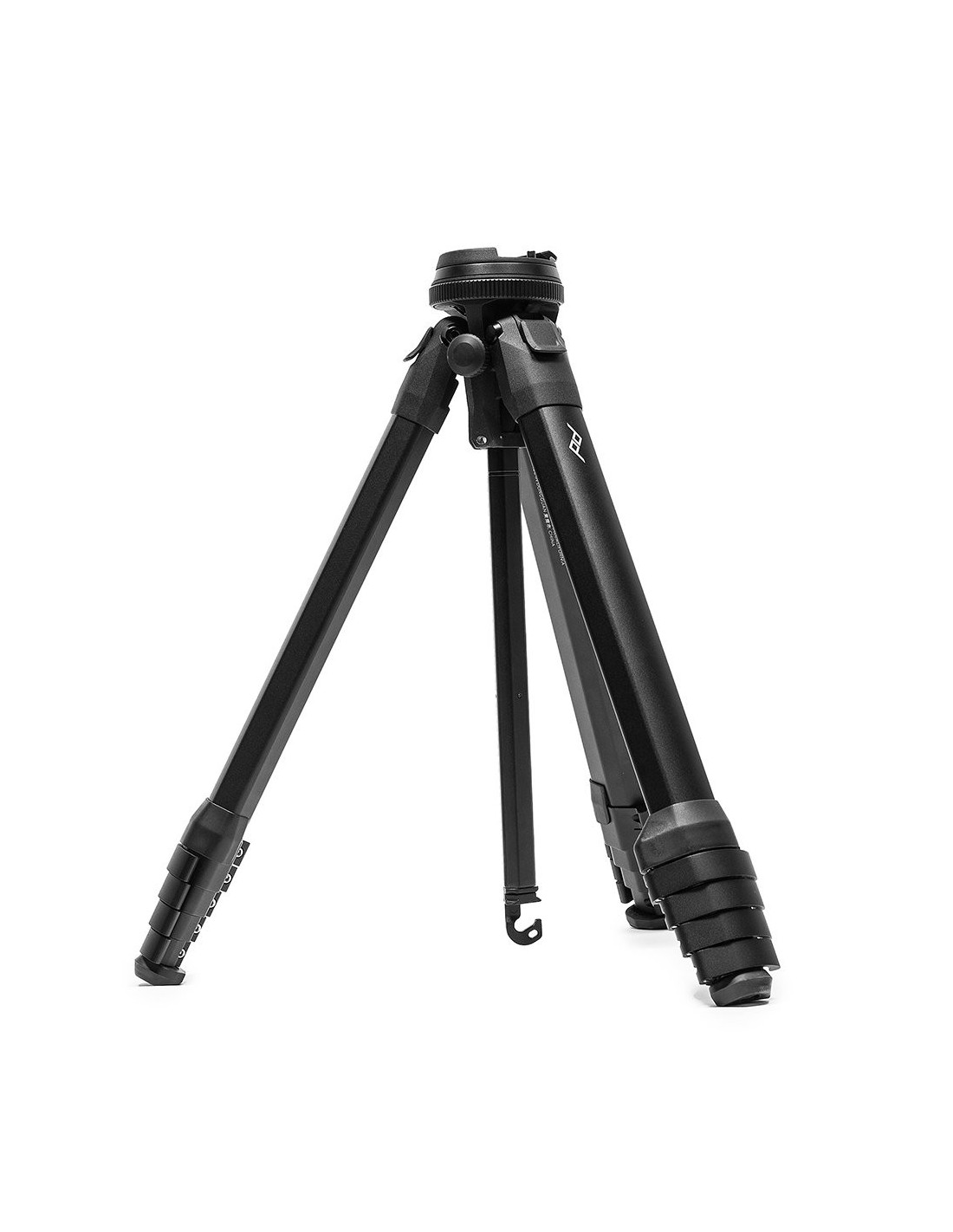

  • Integrated load hanging hook.
  • Anchor attachment points for carrying with Peak Design straps (sold separately).

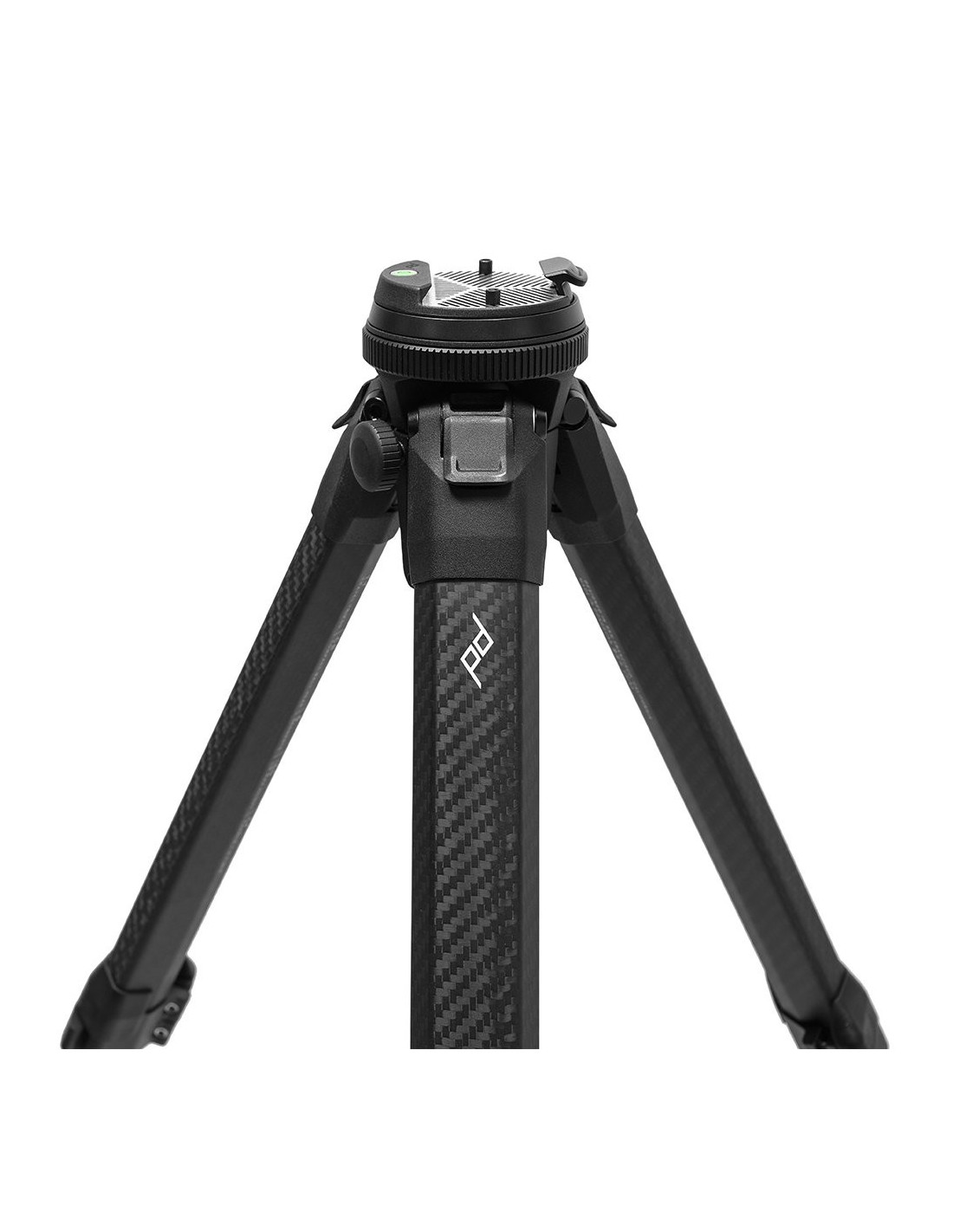

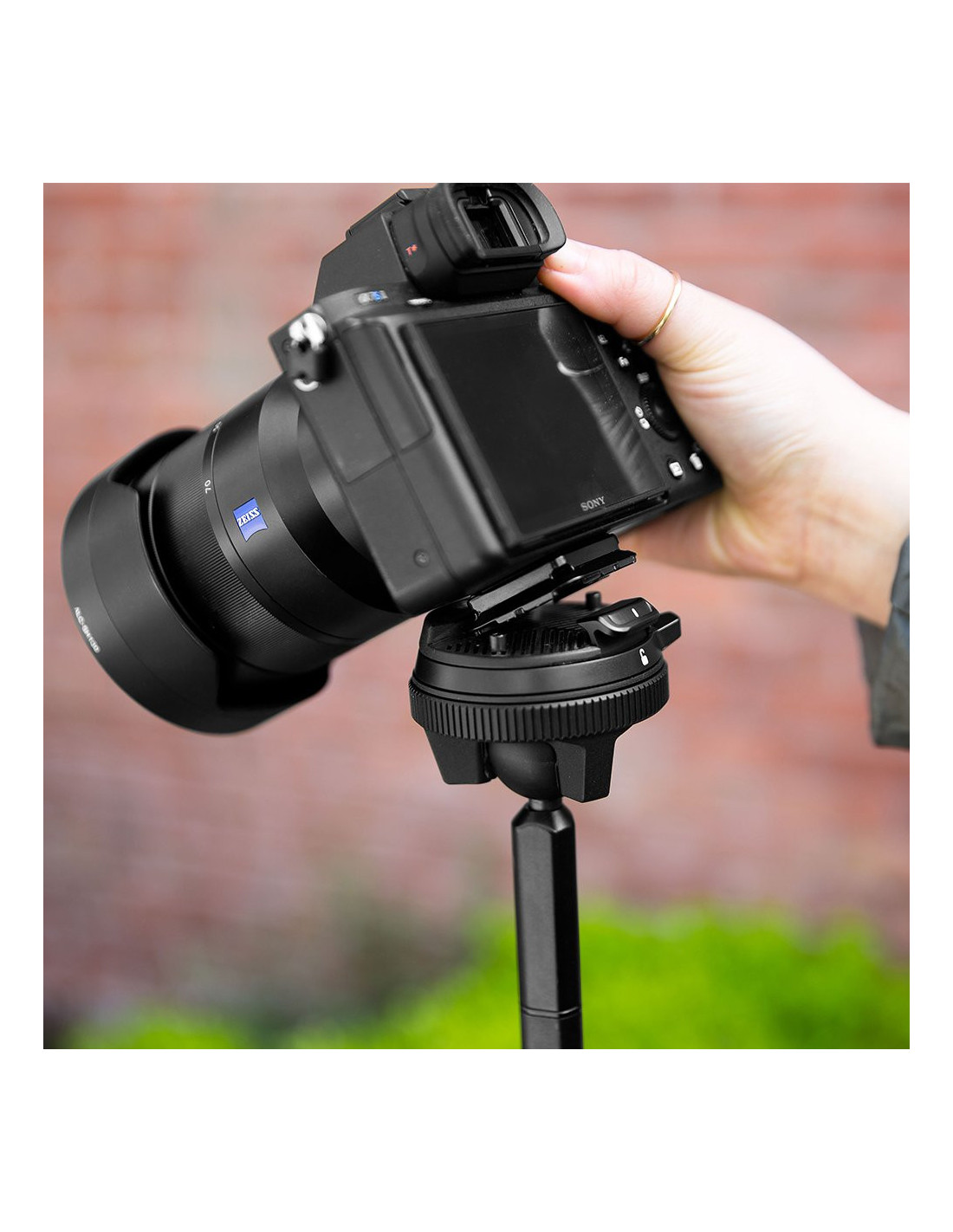

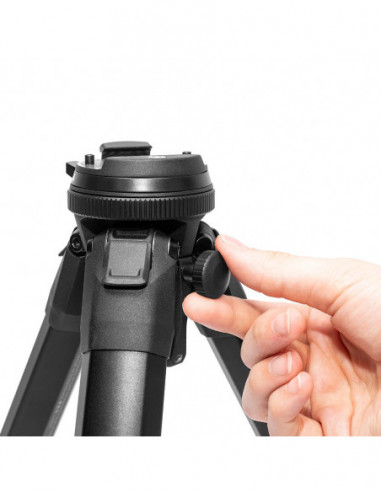

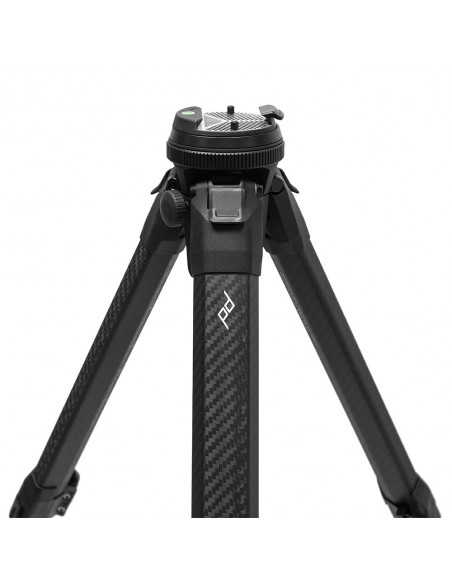

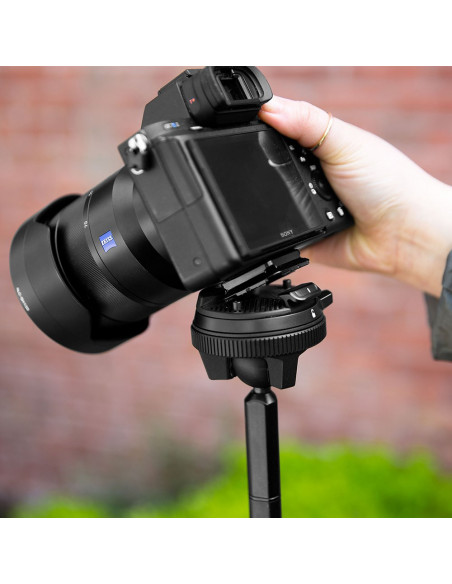

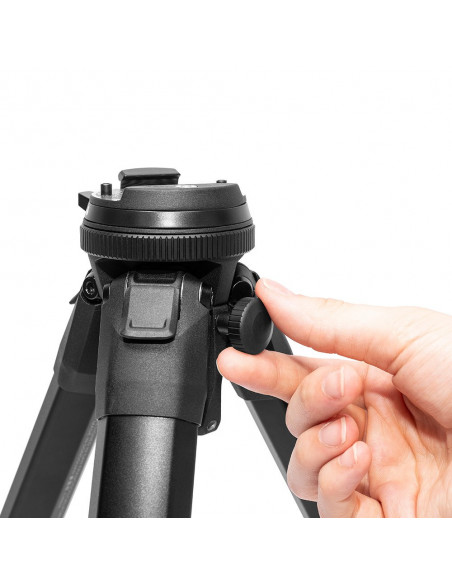

ERGONOMIC BALL HEAD

  • Ultra-smooth, omnidirectional Compact Ball Head.
  • One single adjustment ring. No bulky or confusing knobs.
  • Simple locking ring for total security.
  • Compatible with all PD plates and most 3rd party Arca-type plates.
  • Removable pins allow use with most Arca-type L-brackets.

FOR YOUR PHONE, TOO

  • Built-in and stowable mobile mount.
  • Securely grips any phone/case.

BUILT TO LAST

  • Weather and impact-resistant materials.
  • All parts are serviceable, cleanable, and replaceable.
  • Includes a padded, weatherproof case.
  • Guaranteed for life.

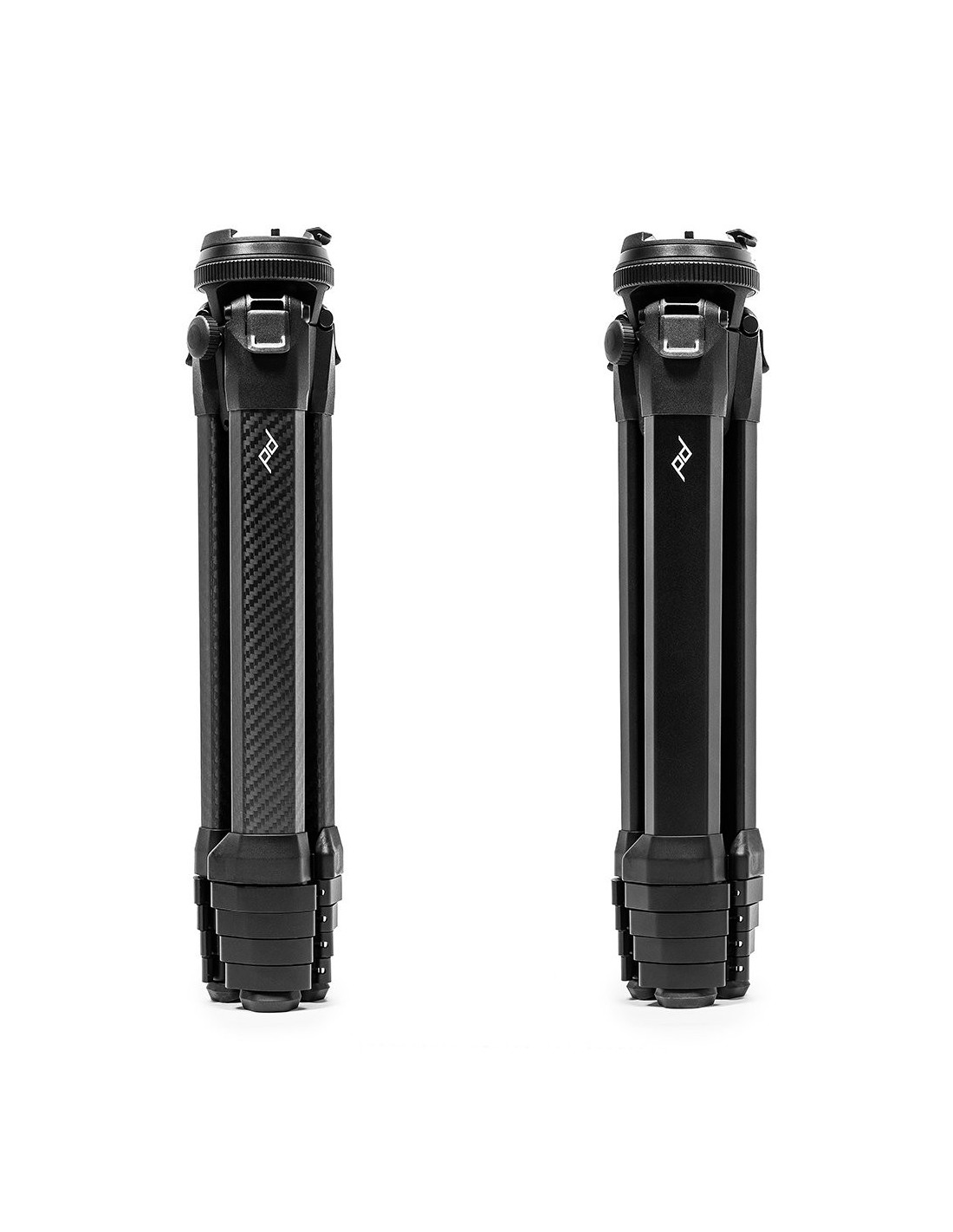

SKU/PART NUMBER:

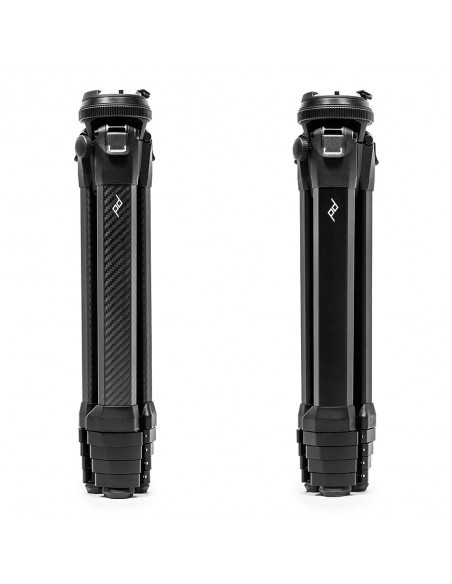

TT-CB-5-150-AL-1 (Aluminum)

TT-CB-5-150-CF-1 (Carbon Fiber)

WEIGHT:

Alloy: 1.56 kg (3.44 lbs)

Carbon: 1.29 kg (2.81 lbs)

WEIGHT CAPACITY:

9.1 kg (20 lbs)*

*Optimized for pro setups, up to full-frame DSLR + telephoto lens

COLLAPSED DIMENSIONS:

Length: 39.1 cm (15.4”)

Diameter: 7.9 cm (3.125")

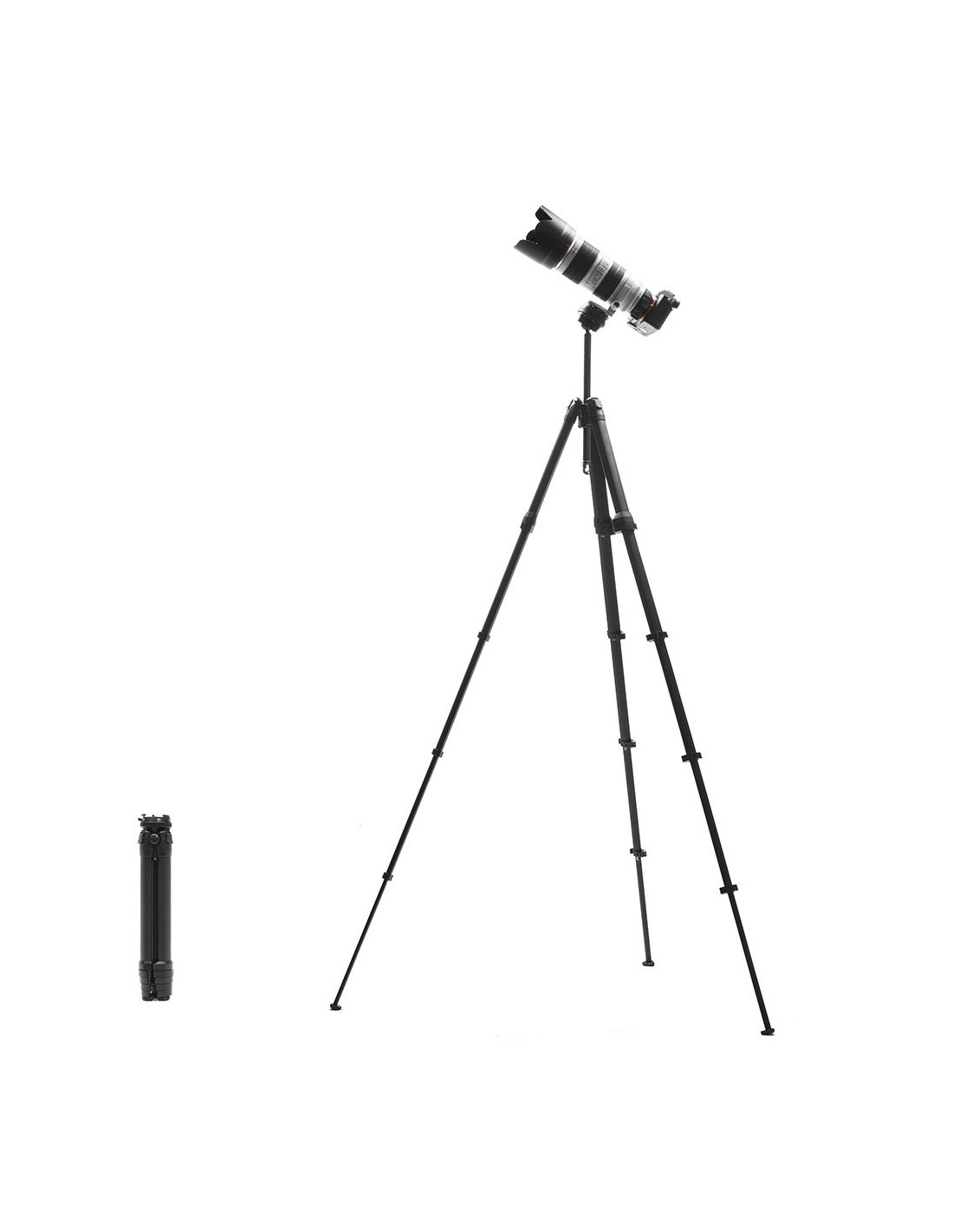

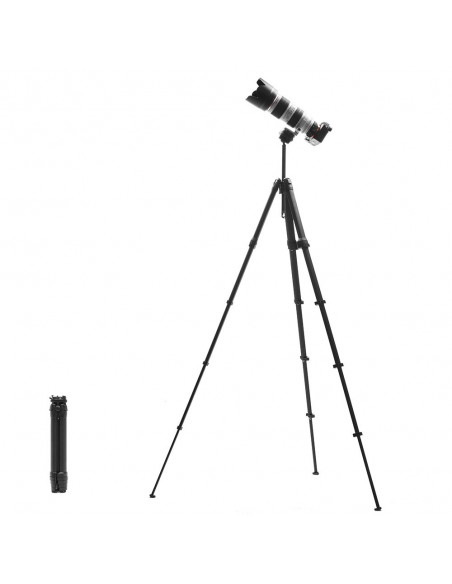

DEPLOYED DIMENSIONS:

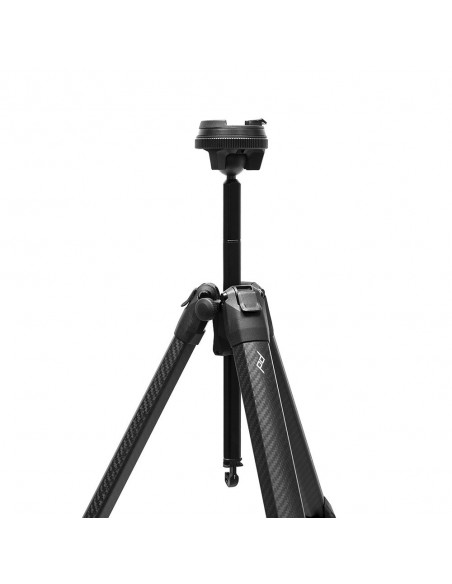

Max height (center column raised): 152.4 cm (60")

Max height (center column down): 130.2 cm (51.25")

Min height (low mode): 14 cm (5.5”)

Tabletop Mode (center column raised): 57.2 cm (22.5")

Tabletop Mode (center column down): 35.9 cm (13.125")

LEG SECTIONS

5

LEG LOCKS

Aluminum cams

MATERIALS:

Ball Head, Hub, Load Hook: Powdercoated A380 aluminum

Legs: Anodized 6061-T6 aluminum (Alloy), Carbon F’n fiber (Carbon)

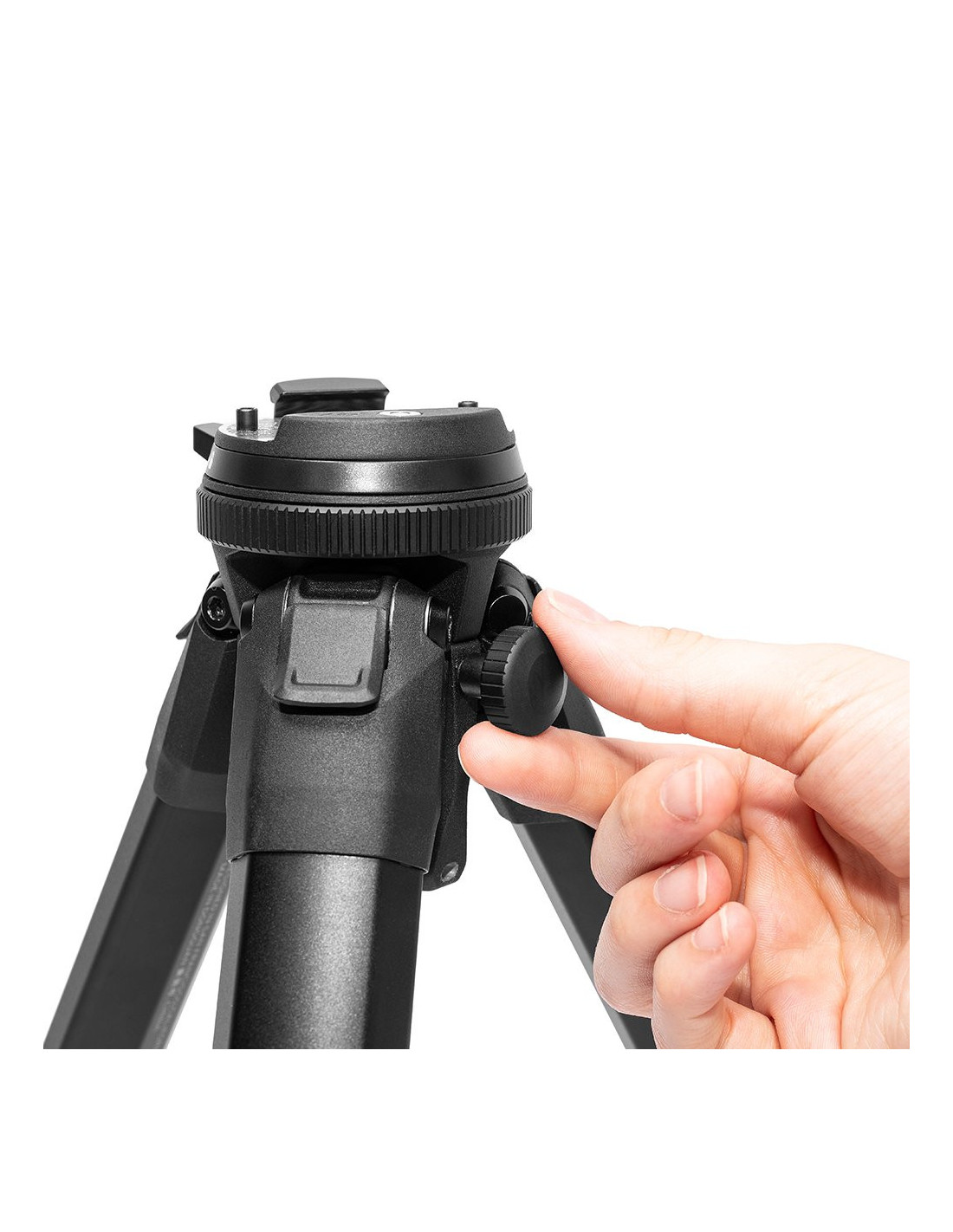

Quick Release, Adjustment Ring, Center Column Knob: Anodized 6061-T6 aluminum

Locking Ring: Polycarbonate/ABS blend

Feet: ShoreA60 TPU

WHAT IS IN THE BOX

  • Tripod (Legs + Compact Ball Head) x1
  • Weatherproof Soft Case x1
  • Standard Plate x1
  • 4mm + 2.5 Hex Wrench x1
  • Mobile Mount x1
  • Bushing Removal Tool x1
